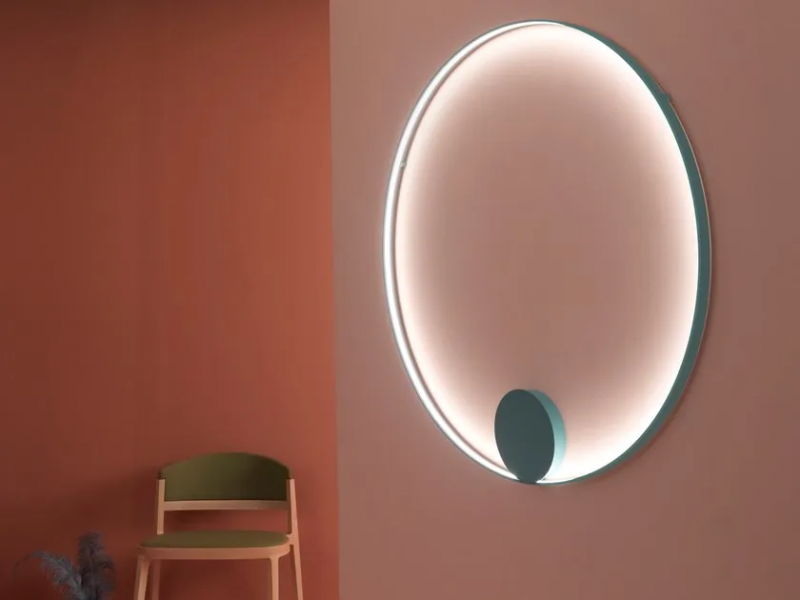

Rings

Rings structures are available in different diameters. Each ring is independent and it is possible to create compositions of any shape and size. Light Source: CRI>80, 252 LED/m Ø 30 cm: LED 17W 24V dc 2700K/3000K 1510Lm 4000K 1680Lm Ø 40 cm: LED 22W 24V dc 2700K/3000K 2000Lm 4000K 2200Lm Ø 50 cm: LED 26W 24V dc 2700K/3000K 2390Lm 4000K 2650Lm Ø 80 cm: LED 38W 24V dc 2700K/3000K 3450Lm 4000K 3830Lm Ø 115 cm: LED 49W 24V dc 2700K/3000K 4460Lm 4000K 4930Lm Ø 135 cm: LED 52W 24V dc 2700K/3000K 4800Lm 4000K 5300Lm Ø 145 cm: LED 56W 24V dc 2700K/3000K 5050Lm 4000K 5650Lm Ø 150 cm: LED 57W 24V dc 2700K/3000K 5150Lm 4000K 5750Lm Ø 190 cm: LED 62W 24V dc 2700K/3000K 5600Lm 4000K 6200Lm High efficiency light source: CRI>90, 147 LED/m Ø 30 cm: LED 17W 24V dc 2700K/3000K 1608Lm 4000K 1900Lm Ø 40 cm: LED 23W 24V dc 2700K/3000K 2133Lm 4000K 2520Lm Ø 50 cm: LED 28W 24V dc 2700K/3000K 2590Lm 4000K 3061Lm Ø 80 cm: LED 43W 24V dc 2700K/3000K 3975Lm 4000K 4697Lm Ø 115 cm: LED 59W 24V dc 2700K/3000K 5426Lm 4000K 6413Lm Ø 135 cm: LED 65W 24V dc 2700K/3000K 6029Lm 4000K 7125Lm Ø 145 cm: LED 69W 24V dc 2700K/3000K 6420Lm 4000K 7587Lm Ø 150 cm: LED 71W 24V dc 2700K/3000K 6610Lm4000K 7811Lm Ø 190 cm: LED 80W 24V dc 2700K/3000K 7481Lm 4000K 8841Lm For both: ON/OFF power supply included in the ceiling rose / DALI/PUSH dimmable on request Modular customizable system / Special compositions available on request The following large aluminium diameters are also available, with high efficiency LED source 147 LED/m: Ø 200 cm, 250 cm, 300 cm, 350 cm and 400 cm. From Ø 250 cm the Rings is divided into two parts. Material: Aluminium
