Stripe system

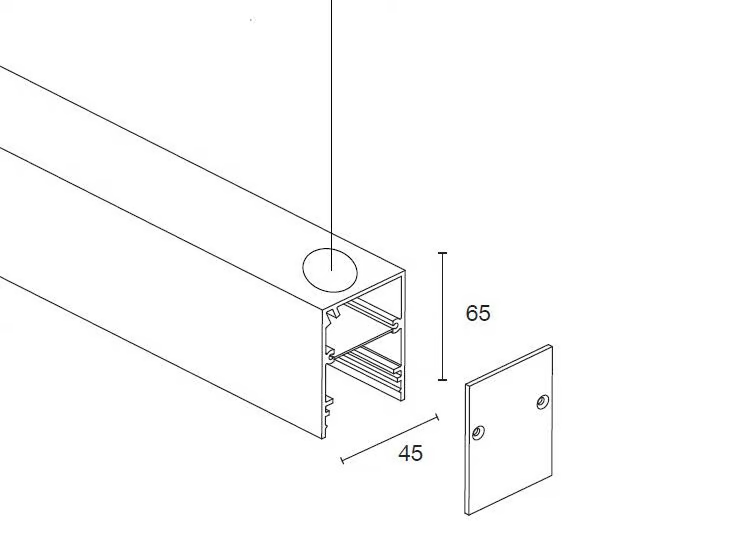

Stripe System is a suspension system made up of an aluminium profile by meter electrified with one or two IP20 LED strips with high luminous flux 2150 lm/m (24 W/m), and a satin PMMA diffuser. The caps kit, the diffuser, the length of the profile and the number of elements and/or accessories must be specified in the order. Available in glossy white and matt black finishes and on request in natural satin aluminum*, brushed titanium* and bright chrome*. Available with two white colour temperatures: (warm 2900-3200K and natural 3700-4250K). *On request finishings. Features 1 STRIP LED 24W/m 24V DC IP43 / IP40 106113000033 - Finish: White - Colour Temp. 2900-3200K 2000lm/m - CRI 80 106113000034 - Finish: Black - Colour Temp. 2900-3200K 2000lm/m - CRI 80 097003000010 - Finish: White - KIT TAPPI 106113000035 - Finish: White - Colour Temp. 3700-4300K 2130lm/m - CRI 80 106113000036 - Finish: Black - Colour Temp. 3700-4300K 2100lm/m - CRI 80 097003000011 - Finish: Black - KIT TAPPI 2 STRIP LED 48W/m 24V DC IP43 / IP40 106113000037 - Finish: White - Colour Temp. 2900-3200K 4000lm/m - CRI 80 106113000038 - Finish: Black - Colour Temp. 2900-3200K 4000lm/m - CRI 80 097003000010 - Finish: White - KIT TAPPI 106113000039 - Finish: White - Colour Temp. 3700-4300K 4260lm/m - CRI 80 106113000040 - Finish: Black - Colour Temp. 3700-4300K 4260lm/m - CRI 80 097003000011 - Finish: Black - KIT TAPPI Diffuser The diffuser is an accessory of the lamp that allows to create a diffused light effect and homogenize the luminous flux emitted by the light source, in order to enlight the environment in most comfortable way. In the specific case of Stripe, the diffuser is an extruded satin methacrylate, designed with a series of features which allow a precise and safe housing in the aluminum profile. High light efficiency Thanks to a careful design and engineering of L-TECH products, the article STRIPE is characterized by a high luminous efficiency (ratio of emitted flux and flow of the light source) in both LED and T5 linear fluorescent or T5 Seamless. Particular attention has been paid to the study of the geometry and to the choice of the material for the reflector. The shape and the type of material (an aluminum alloy extra glossy at high specularity) allow to convey outside the device almost all the heating and the luminous flux emitted from the light source.
