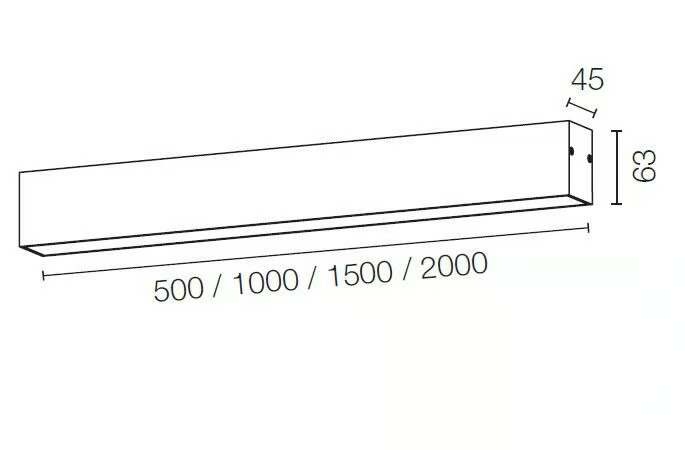

Габаритные размеры
Информация

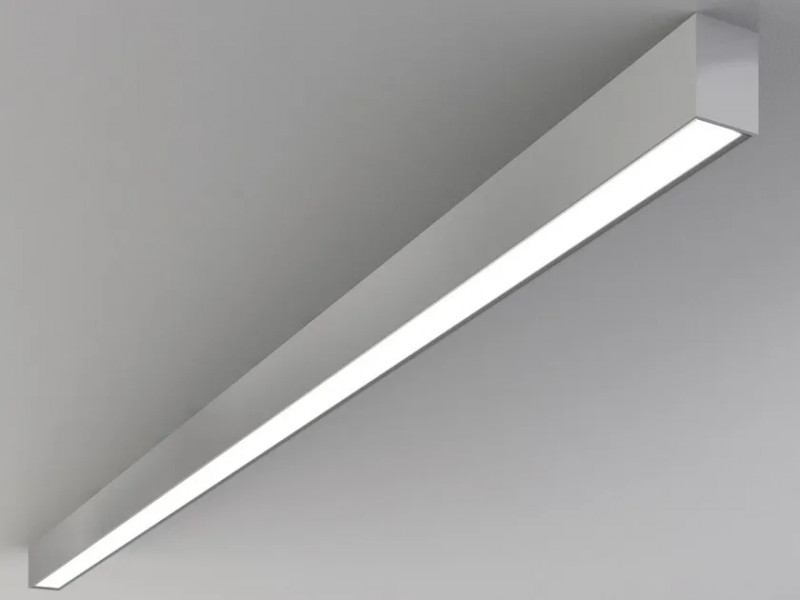

Stripe Go is an aluminum profile housing one or two LED strips (24W, 2150lm/m), and complete with frosted PMMA caps and diffuser kit. Available in glossy white and matt black finishes and on request in natural satin aluminum *, brushed titanium * and bright chrome *. Available with two white colour temperatures: (warm 2900-3200K and natural 3700-4250K).
*On request finishing.
Features
Stripe Go 50
IP43 / IP23 / IP40
- 1 STRIP LED x 12W 24V DC
306109000001 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 1000lm - CRI 80
306109000002 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 1000lm - CRI80
306109000003 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 1065lm - CRI80
306109000004 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 1065lm - CRI80
- 2 STRIP LED x 24W 24V DC
306109000005 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm- CRI 80
306109000006 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI80
306109000007 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
306109000008 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
Stripe Go 100
IP43 / IP23 / IP40
- 1 STRIP LED x 24W 24V DC
306109000009 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI 80
306109000010 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 2000lm - CRI80
306109000011 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
306109000012 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 2130lm - CRI80
- 2 STRIP LED x 48W 24V DC
306109000013 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI 80
306109000014 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI80
306109000015 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
306109000016 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
Stripe Go 150
IP43 / IP23 / IP40
- 1 STRIP LED x 36W 24V DC
306109000017 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 3000lm - CRI 80
306109000018 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 3000lm - CRI80
306109000019 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 3195lm - CRI80
306109000020 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 3195lm - CRI80
- 2 STRIP LED x 72W 24V DC
306109000021 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 6000lm - CRI 80
306109000022 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 6000lm - CRI80
306109000023 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 6390lm - CRI80
306109000024 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 6390lm - CRI80
Stripe Go 200
IP43 / IP23 / IP40
- 1 STRIP LED x 48W 24V DC
306109000025 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI 80
306109000026 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 4000lm - CRI80
306109000027 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
306109000028 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 4260lm - CRI80
- 2 STRIP LED x 96W 24V DC
306109000029 - Finish: White - Screen: Diffuser - Colour Temp: 2900-3200K 8000lm - CRI 80
306109000030 - Finish: Black - Screen: Diffuser - Colour Temp: 2900-3200K 8000lm - CRI80
306109000031 - Finish: White - Screen: Diffuser - Colour Temp: 3700-4250K 8452lm - CRI80
306109000032 - Finish: Black - Screen: Diffuser - Colour Temp: 3700-4250K 8452lm - CRI80
The Stripe GO wall and ceiling project includes all the wall and ceiling-mounted STRIPE products ready to be installed, made up of elements with a narrow 45mm aluminum profile complete with plugs and diffuser. Inside the aluminum profile one or two IP20 strips are installed with a luminous flux of 2150lm/m (19.2W/m). Thanks to the optimal engineering of the Stripe GO Seamless and Stripe GO LED project, a continuous luminous flux emission without shadow zones is guaranteed even at the ends of the modules. Possibility of installing the dimmer to adjust the light intensity. Availability of solutions with emergency kit.
