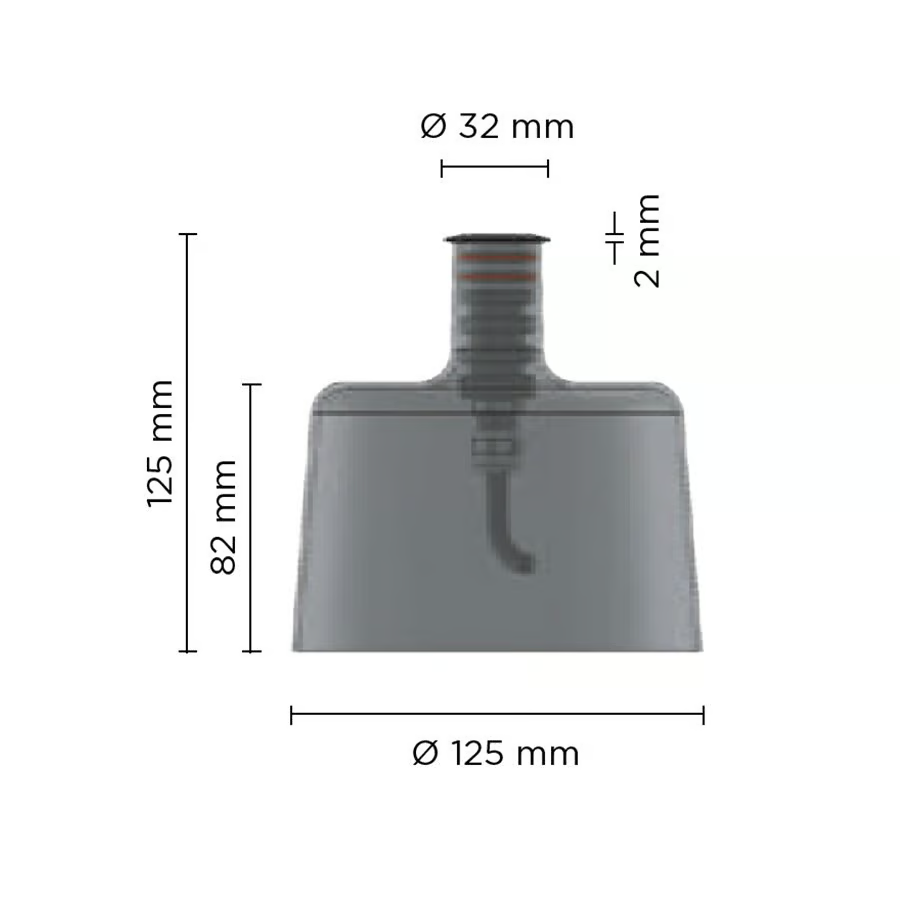

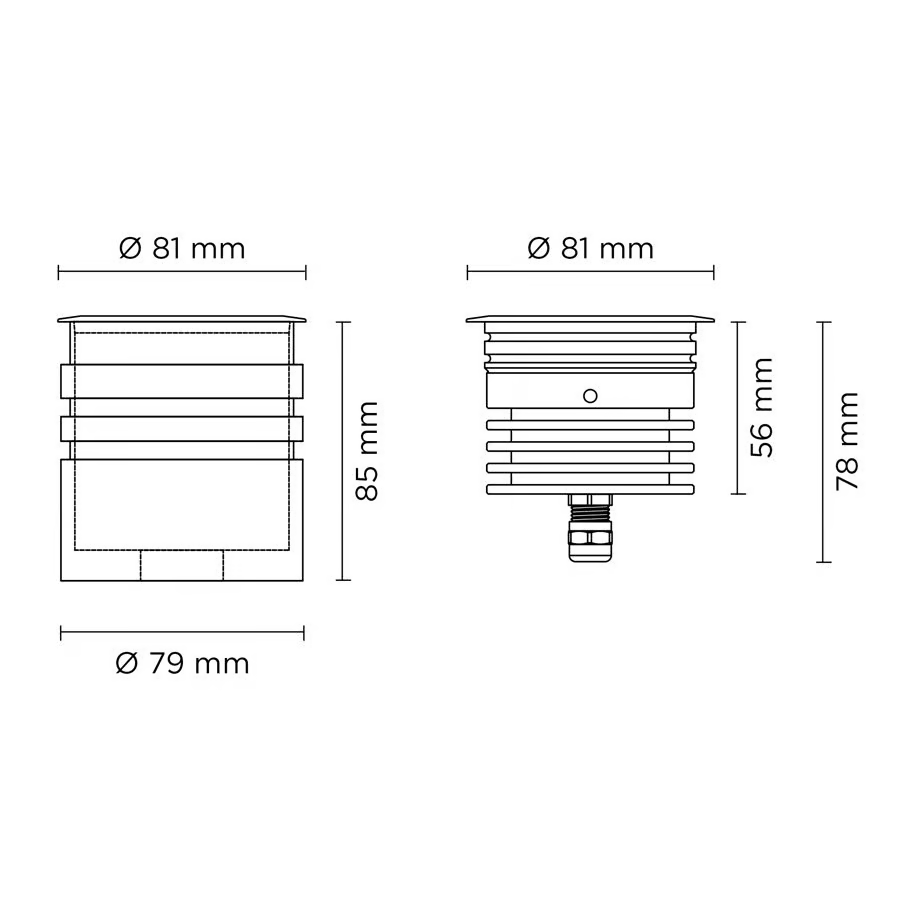

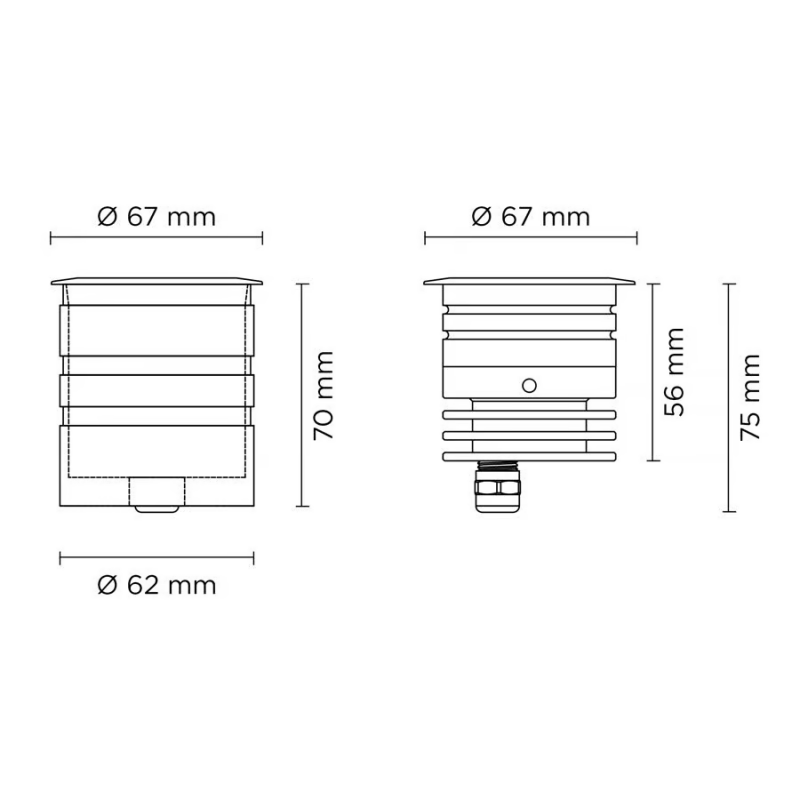

Габаритные размеры
Информация

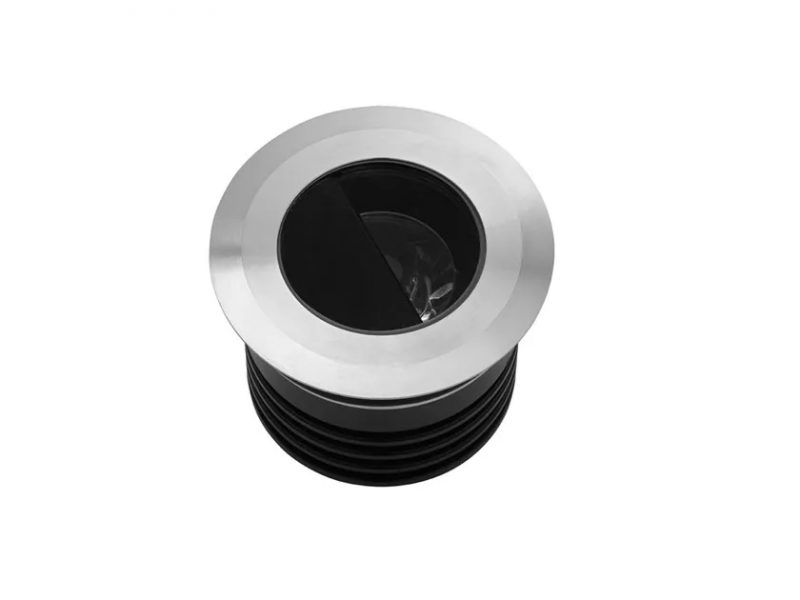

Hydrofloor Nano is a floor-mounted LED steplight in anodized aluminum for outdoors.
201072 HYDROFLOOR NANO XS 2,5W
Round ground-recessed luminaire for outdoor installation, Hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XP-L LED. IP68 rating.
· Material: High corrosion resistance die-cast copper-free aluminum body
· Coating: Polyester powder coating with phosphocromating pre-finish
· NR. 1 x CREE XP-L LED
· Tempered
· M16 rubber grommet
201073 HYDROFLOOR NANO 10W
Round ground-recessed luminaire for outdoor installation, Hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XHP35 HD LED. IP68 rating.
· Material: Hard anodized black aluminium body
· NNR. 1 x CREE XHP35 LED
· Tempered
· M12
201074 HYDROFLOOR NANO XXS
Round ground-recessed luminaire for outdoor installation, Hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current 350 mA driver needed, with 1 CREE XP-G2 LED. IP68 rating. 1 WATT
· Material Hard anodized black aluminium body
· Trim Stainless steel AISI 316 L
· Light source Nr. 1 CREE XP-G2 LED
· Remote driver Constant current max 350 mA
· Gasket Silicone rubber
· Glass Tempered
· Cable gland M12
· Power cable 1 mt. neoprene power cable included
