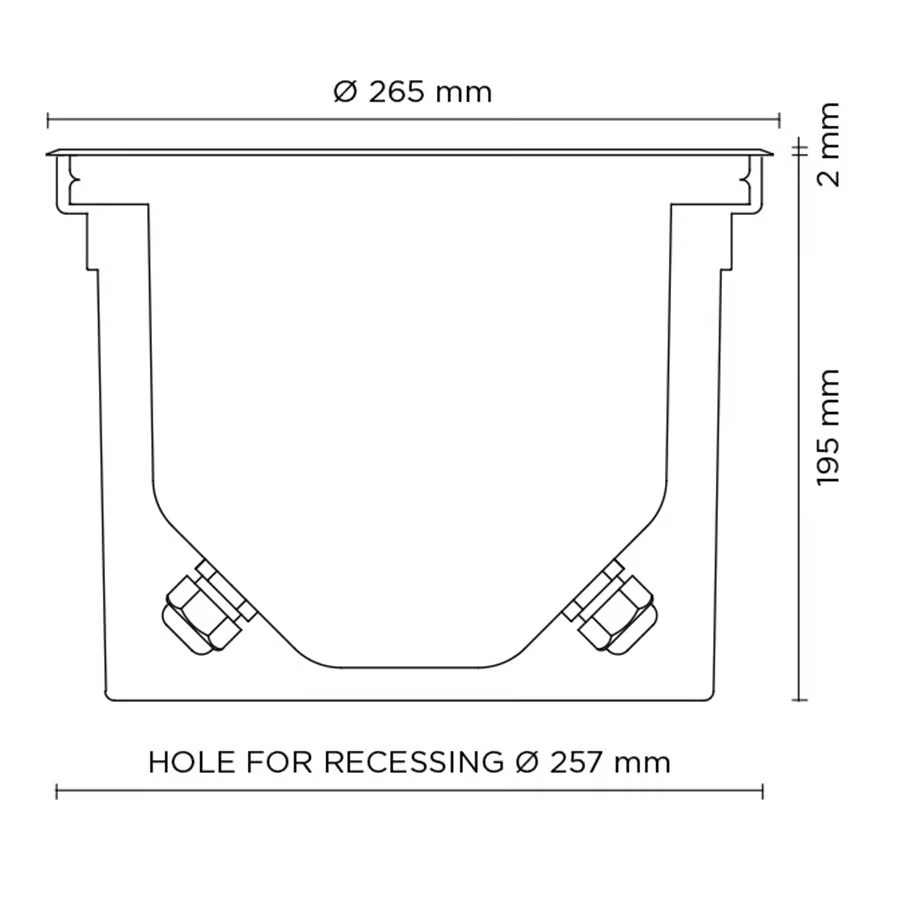

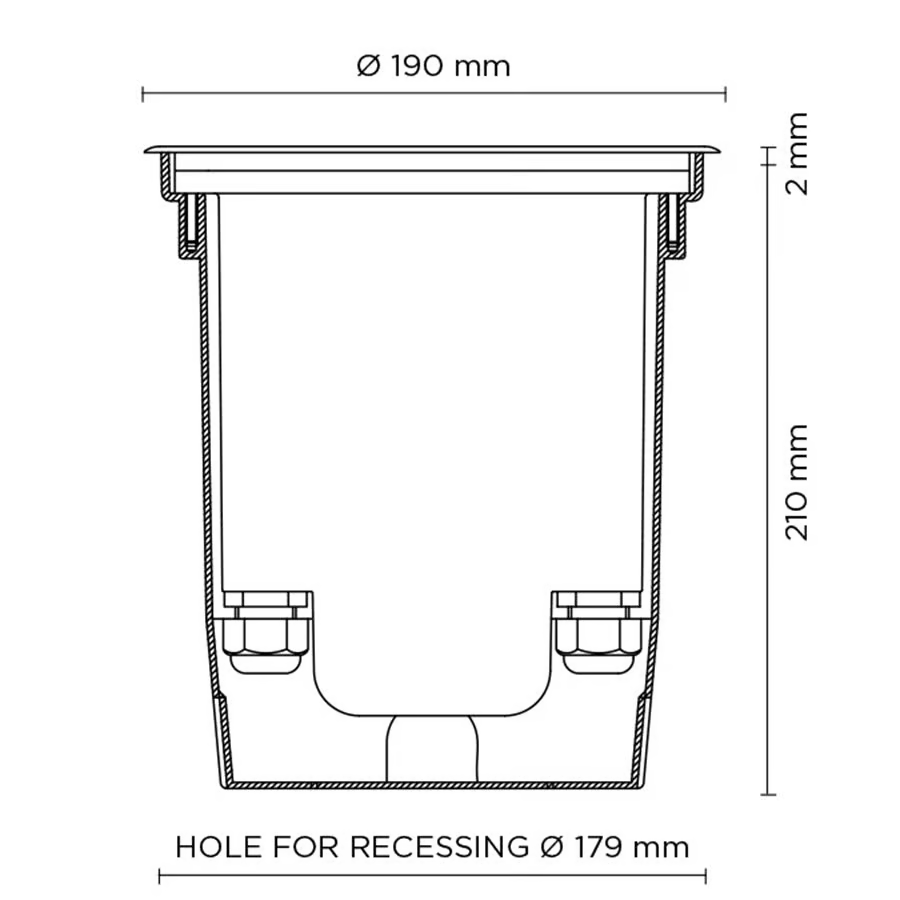

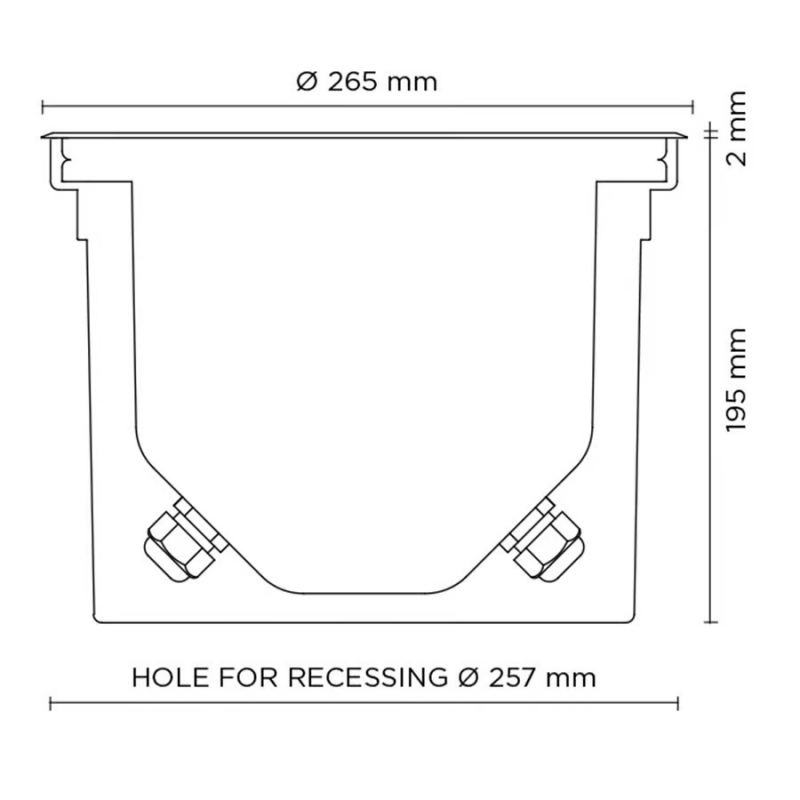

Габаритные размеры
Информация
Hydrofloor Cob is a Ground-recessed luminaire in round shape for outdoor installation, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 304 frame, tempered safety glass, moulded silicone gasket. Symmetrical light distribution with adjustable optics.
201068 HYDROFLOOR MEDIUM COB 19W
Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB 2530 COB LED. IP67 rating.
· IK Rating IK10
· Material High corrosion resistance die-cast copper-free aluminum body
· Trim Stainless steel AISI 304
· Coating Polyester powder coating with phosphocromating pre-finish
· Light source Nr. 1 CREE CXB 2530 COB LED
· Screws Stainless steel
· Transformer Electronic power supply 20/240V 50/60Hz built-in
· Static weight resistance Max 5000 Kg
· Gasket Silicone rubber
· Glass Tempered
· Cable gland Double M20
· Adjustable +/- 15 degrees
· Power cable 1 mt. neoprene power cable included
· Polypropilene recessing box included
201069 HYDROFLOOR MAXI COB 32W
Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB 3050 COB LED. IP67 rating.
· IK Rating IK10
· Material High corrosion resistance die-cast copper-free aluminum body
· Trim Stainless steel AISI 304
· Coating Polyester powder coating with phosphocromating pre-finish
· Light source Nr. 1 CREE CXB 3050 COB LED
· Screws Stainless steel
· Transformer Electronic power supply 220/240V 50/60Hz built-in
· Static weight resistance
· Max 5000 Kg
· Gasket Silicone rubber
· Glass Tempered
· Cable gland Double M20
· Adjustable +/- 15 degrees
· Power cable 1 mt. neoprene power cable included
· Polypropilene recessing box included
