Xline beam
ICB-66148
Потолочный светильник
2020
XLINE Beam 20: 1220 x 34 x H 80 mm; XLINE Beam 30: 1520 x 34 x H 80 mm
Информация

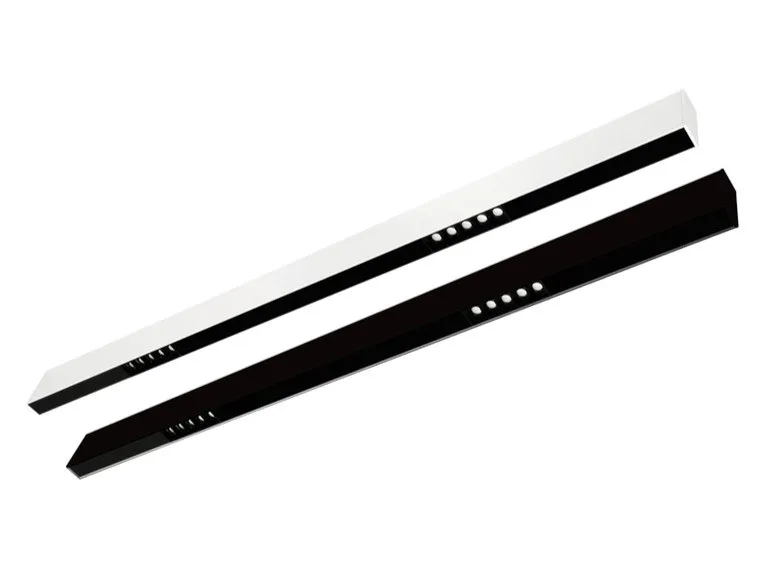

Design aluminium profile equipped with extremely powerful Osram LEDs, placed in a very compact reflector, giving a unique architectural result. XLINE BEAM offers a superb and elegant bundle of light.
TECHNICAL DATA
IP classification IP20
Power source 220-240 VAC 50/60 Hz
Housing powder coated aluminium white (RAL 9003) or black (RAL 9005)
Driver including (700 mA)
Electrical connection 5-PIN terminalblock
Average lifetime 40.000 h at L80/B10
Operating temperature range -10° C till +45° C
Dimmable dimmable DALI
PHOTOMETRIC DATA
LED type OSRAM - OSLON SQUARE 2 Watt
Luminous flux warm white 2000 Lumen
Colour temperature
XLINE Beam 20: warm white 2000 K
XLINE Beam 30: warm white 3000 K
CRI90
Beam angle 50°
