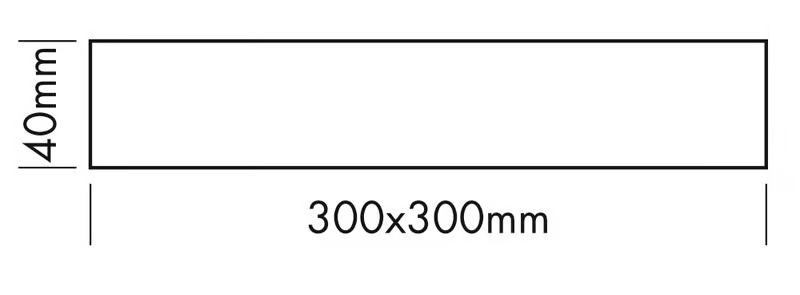

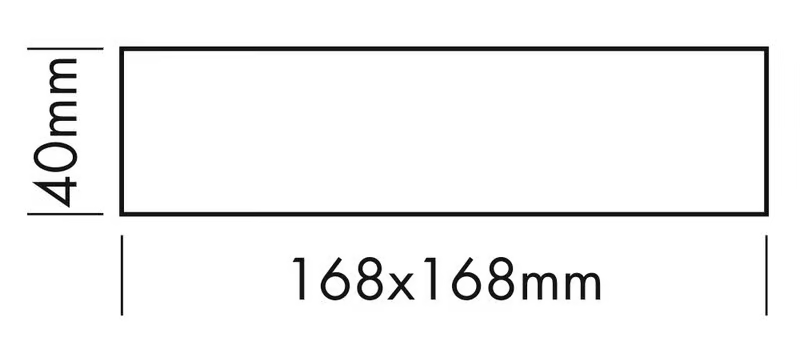

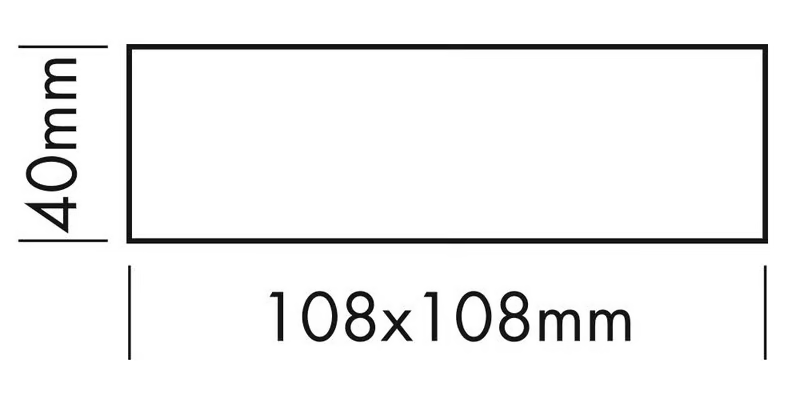

Габаритные размеры
Информация

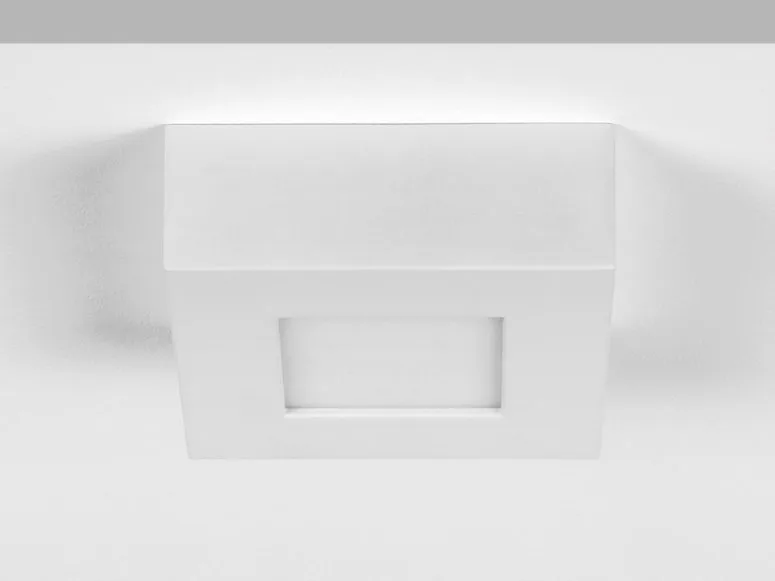

SOL CL Square is a LED metal ceiling light available in 3 dimenisions.
TECHNICAL DATA
IP40
Power source 220-240 VAC 50/60 Hz
Housing metal frame white, panel PMMA white opal
Driver including (500 mA / 12 V)
Electrical connection 2-PIN terminalblock
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
Dimmable optional with special constant current dimmer or driver
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
neutral white S 450 Lumen - M 1100 Lumen - XL 2800 Lumen
warm white S 400 Lumen - M 1050 Lumen - XL 2700 Lumen
Colour temperature
neutral white 4000 K
warm white 3000 K
CRI80
Beam angle 120°
