Габаритные размеры
Информация

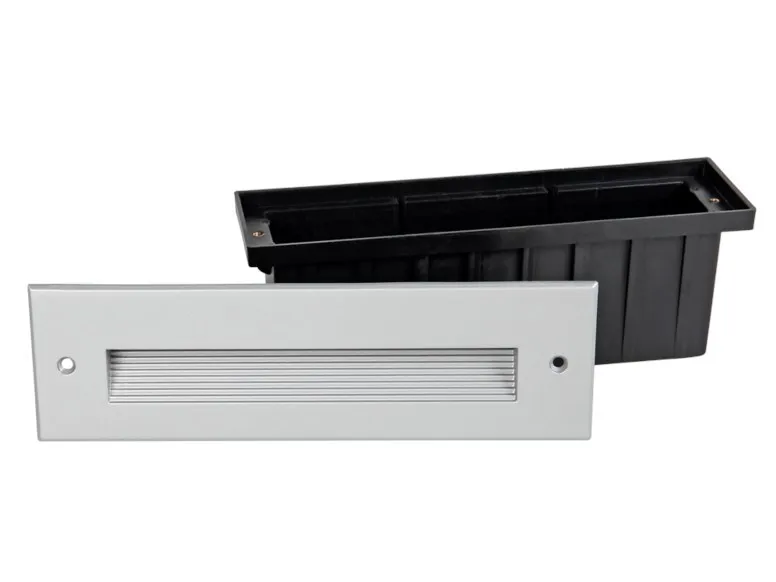

The PROLED WALL LIGHT REC series is designed for wall or step integration and offers various design possibilities in architectural illumination.
Incl. ABS plastic mounting sleeve.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC
Housing powder coated aluminium dark grey or white
Mounting sleeve ABS plastic
Electrical connection 1x cable 0,5 m H05RN-F 2x 1,0 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED typeSMD LEDs
Luminous flux
housing dark grey:
warm white 380 Lumen
housing white:
warm white 550 Lumen
Colour temperaturewarm white 3000 K
CRI80
Beam angle 120°.
