Габаритные размеры
Информация

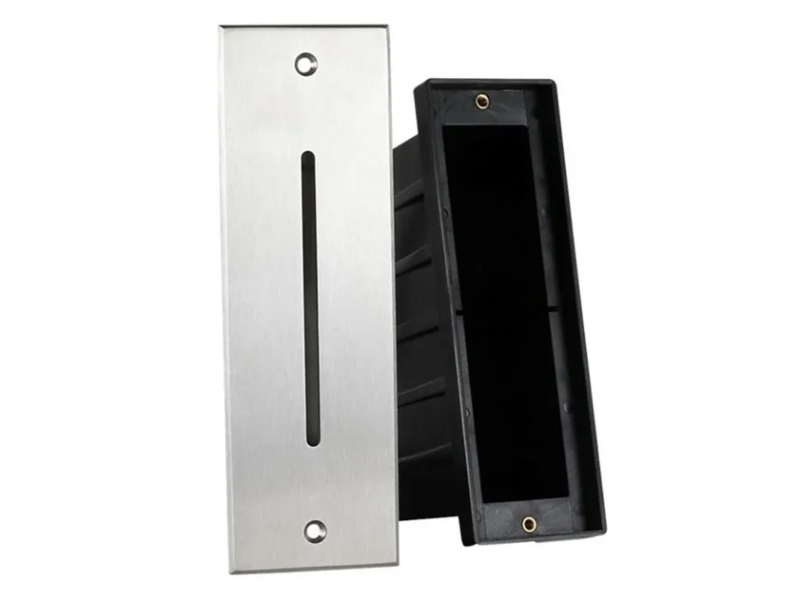

The PROLED WALL LIGHT REC SLOT is designed for wall integration and offers various design possibilities in architectural illumination.
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC
Frame stainless steel 316
Housing powder coated aluminium grey, 6 mm tempered glass
Mounting sleeve ABS plastic
Electrical connection 1x cable 0,5 m H05RN-F 2x 1,0 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type OSRAM 2 Watt high power
Luminous flux warm white 20 Lumen
Colour temperature warm white 2700 K
CRI80
Beam angle 70°/45°.
