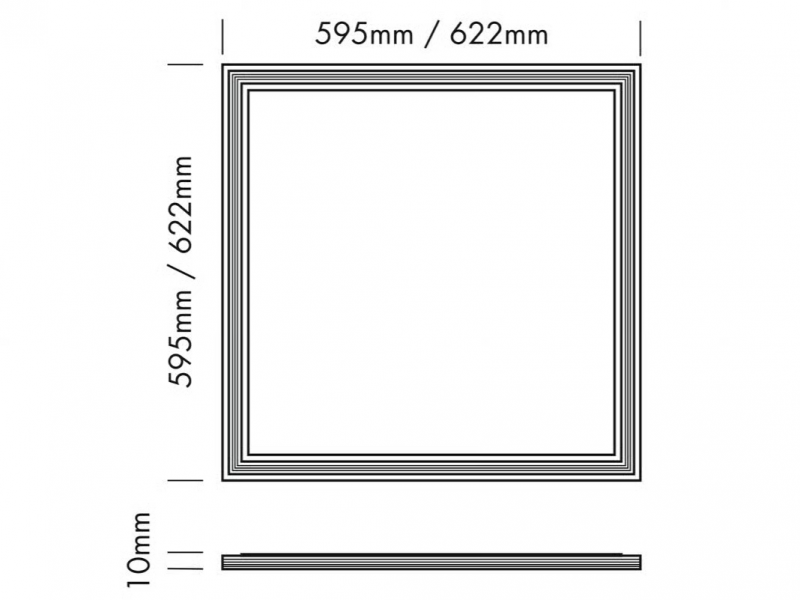

Габаритные размеры
Информация

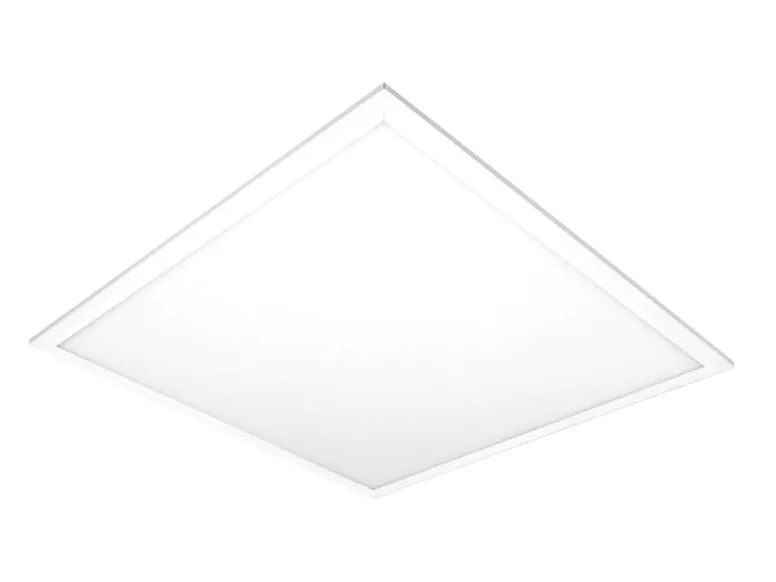

Panel Dynamic White Dali DT8 is a LED Lamp for false ceiling.
Slim LED panel for grid ceiling 600 x 600 mm and 625 x 625 mm.
Colour temperature is continuously adjustable from 3000 K to 5700 K with microprism diffusor (UGR <19) for wall or ceiling mounting (with optional mounting bracket) or for suspension (with optional suspension set). DALI (DT8) controllable.
TECHNICAL DATA
IP classification IP40
Power source 220-240 VAC 50/60 Hz
Housing metal frame white, panel PMMA white opal
Driver including
Electrical connection 2-PIN terminalblock
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type SMD LEDs
Luminous flux
white 4200 Lumen
warm white 3900 Lumen
warm white+white 4100 Lumen
Colour temperature
white 5700 K
warm white 3000 K
CRI80
Beam angle 90°
UGR< 19
