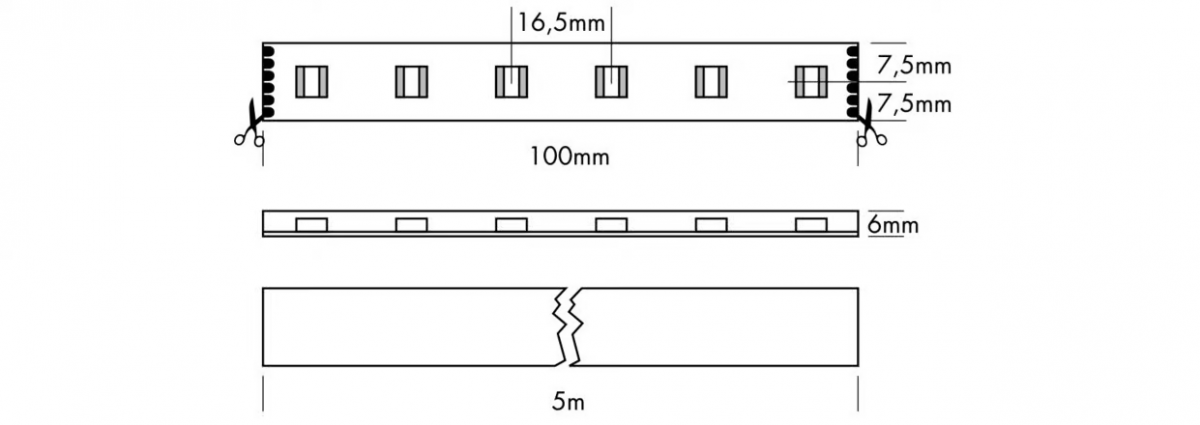

Габаритные размеры
Информация
The PROLED FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the PROLED FLEX STRIPS offer a wide spectrum of application possibilities.
- RGB+CCT (5 colours in one LED). Pastel colour shades and adjustment of the colour temperature possible.
- High flexibility – adaptable to round shapes.
- Installation with clamps or special glue. The 3M adhesive tape on the strip’s backside (self adhesive) is only as fit-up aid.
- IP68 for under water use (power supply cable/end caps IP65 when correctly sealed)
- dimmable, autom. colour change, controllable via DMX 512, DALI, 1-10 V by MULTI power supplies/controller
TECHNICAL DATA
IP classification IP68 (for under water use)
Power source 24 VDC Common Anode (CA)
Electrical connection 1x cable with 6-PIN connector male
Maximum quantity per power input 5 m
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
Width x height 15 x 6 mm
min. Bending radius 20 mm
Cuttable all 6 LEDs (10 cm)
PHOTOMETRIC DATA
LED type SMD RGB+CCT 5-in-1 LEDs
Luminous flux
red 130 Lumen per m
green 330 Lumen per m
blue 80 Lumen per m
white 500 Lumen per m
warm white 410 Lumen per m
r+g+b+w+ww 1450 Lumen per m
Wave length
red 620 nm
green 525 nm
blue 470 nm
Colour temperature
white 6000 K
warm white 2400 K
CRI80
Beam angle 120°
