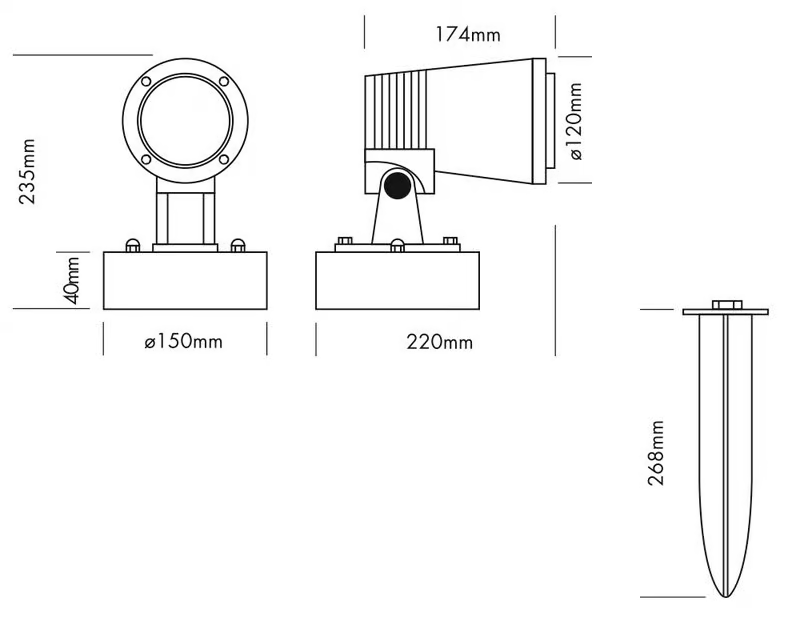

Габаритные размеры
Информация

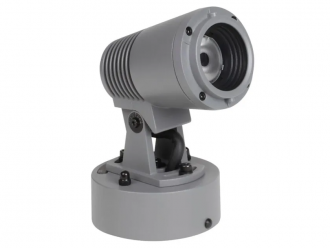

The PROLED SPOT LIGHT IP65 ARC is suitable for facades or architectural lighting indoors as well as outdoors.
Dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
TECHNICAL DATA
IP classification IP65 (for outdoor use)
Power source 24 VDC Common Cathode (CC)
Housing powder coated aluminium grey
Electrical connection 1x cable 4x 0,75 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type RGB 3-in-1 LEDs
Luminous flux
- Small
red 60 Lumen
green 120 Lumen
blue 20 Lumen
r+g+b (white) 200 Lumen
- Medium
red 180 Lumen
green 400 Lumen
blue 80 Lumen
r+g+b (white) 660 Lumen
- XL
red 450 Lumen
green 900 Lumen
blue 130 Lumen
r+g+b (white) 1480 Lumen
Wave length
red 620 nm
green 525 nm
blue 460 nm
Beam angle 30°
