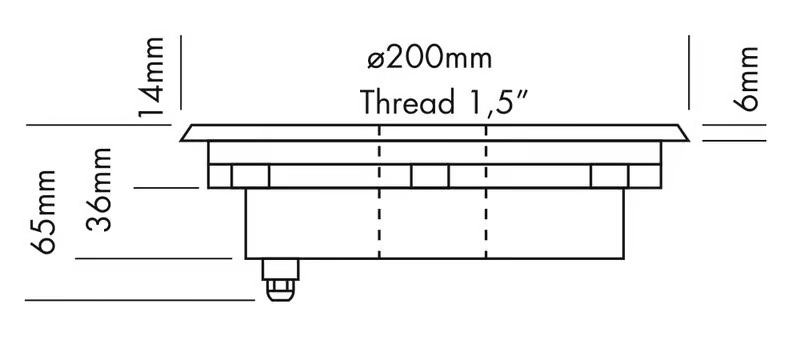

Габаритные размеры
Информация

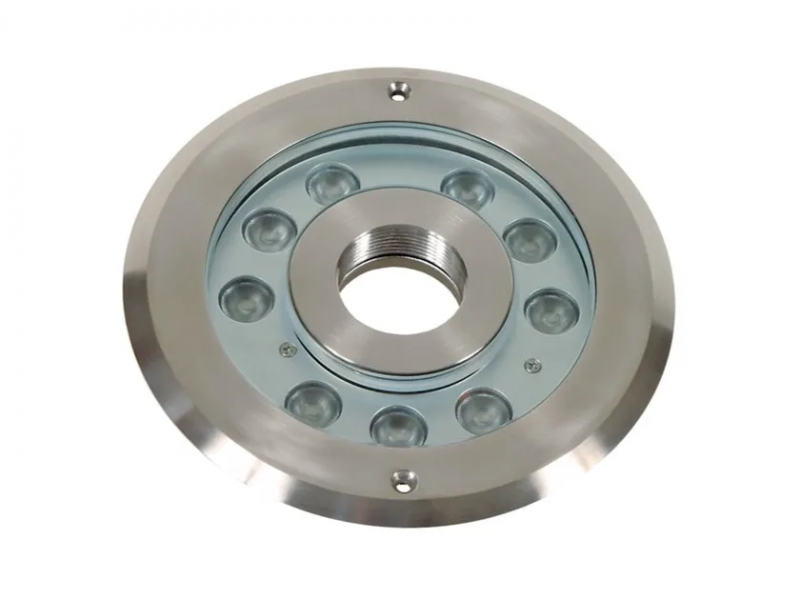

The PROLED FOUNTAIN RING is conceived for underwater illumination of fountains and water gardens.
Dimmable, autom. colour change, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).
TECHNICAL DATA
IP classification IP68 (for underwater use max. 1 m)
Power source 24 VDC Common Cathode (CC)
Housing stainless steel 316, 5 mm tempered glass
Electrical connection 1x cable 3 m H05RN-F 4x 1,0 mm² with 4-PIN IP68 connector male
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +40° C
PHOTOMETRIC DATA
LED type RGB 3-in-1 LEDs
Luminous flux
red 220 Lumen
green 550 Lumen
blue 180 Lumen
r+g+b (white) 950 Lumen
Wave length
red 620 nm
green 525 nm
blue 460 nm
Beam angle 25°.
