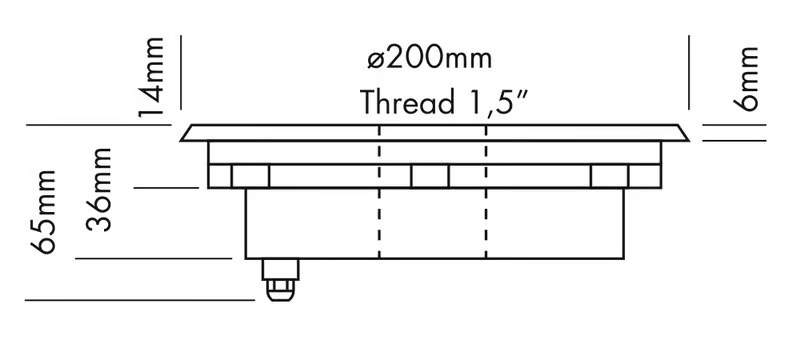

Габаритные размеры
Информация

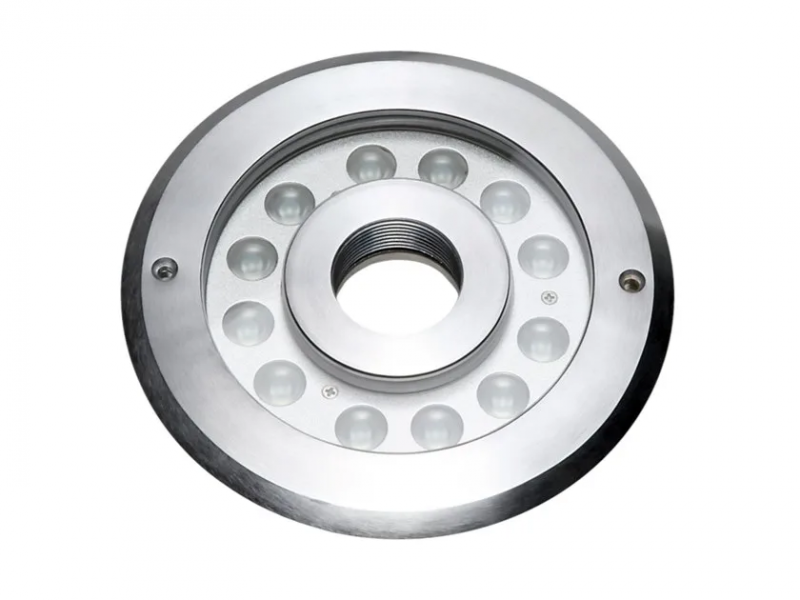

The PROLED FOUNTAIN RING is conceived for underwater illumination of fountains and water gardens.
Dimmable and controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER
This IP68 luminaire can not be operated out of water for over 15 minutes (cooling).
TECHNICAL DATA
IP classification IP68 (for underwater use max. 1 m)
Power source 24 VDC
Housing stainless steel 316, 10 mm tempered glass
Electrical connection 1x cable 3 m H05RN-F 2x 1,0 mm² with 2-PIN IP68 connector male
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +40° C
PHOTOMETRIC DATA
LED type OSRAM 2 Watt high power
Luminous flux
white 1900 Lumen
warm white 1400 Lumen
Colour temperature
white 6500 K
warm white 3000 K
CRI
white 70
warm white 80
Beam angle 25°.
