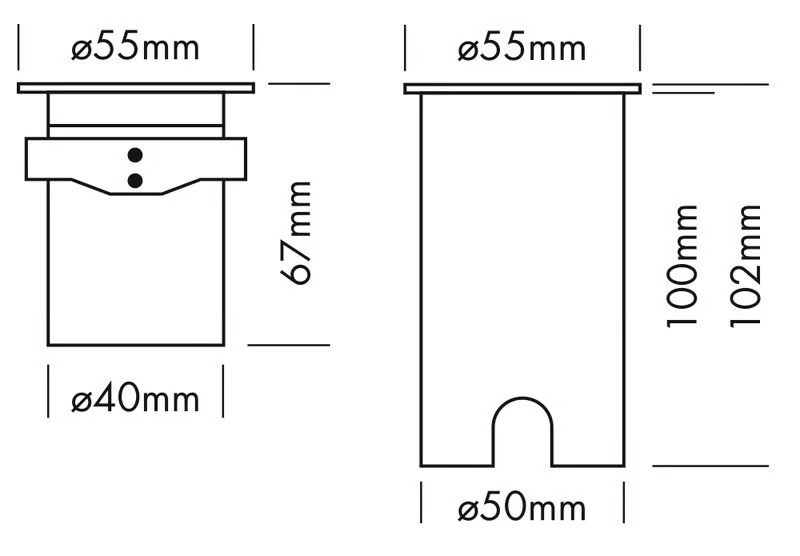

Габаритные размеры
Информация

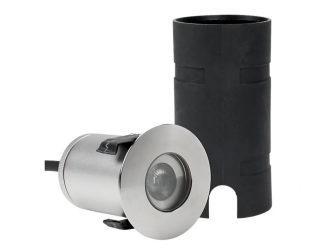

The PROLED INGROUND series is designed for floor integration and offers various design possibilities in architectural illumination.
incl. PVC plastic mounting sleeve.
TECHNICAL DATA
IP classification IP67 (for outdoor use)
Power source 24 VDC
Ring stainless steel 316
Housing silver anodized aluminium, 8 mm tempered glass
Mounting sleeve PVC plastic
Load capacity full area = 2000 kg
Electrical connection 1x cable 1 m H05RN-F 2x 0,75 mm² to open wires
Average lifetime 50.000 h at L80/B10
Operating temperature range -10° C till +45° C
PHOTOMETRIC DATA
LED type CREE 2 Watt high power
Luminous flux
neutral white 150 Lumen
warm white 150 Lumen
Colour temperature
neutral white 4000 K
warm white 3000 K
CRI80
Beam angle 25°
