Barrotto antiquum®
ICB-11710
Решетка
Applications• Pedestrian walkways in modern or stylish contexts• Air vents• Ventilation grillesTechnical CharacteristicsMaterial• Steel S 235 JR UNI EN 10025Finish• Hot-dip galvanising up to UNI EN ISO 1461Colour coating• According to RAL coloursProfile• Bearing bar section U25x12x25 mm – heel proofWeight• Weight Kg/m² 28,6 – unframed raw matLoading• Class 1 pedestrian loading on max net span 1300 mm
Информация

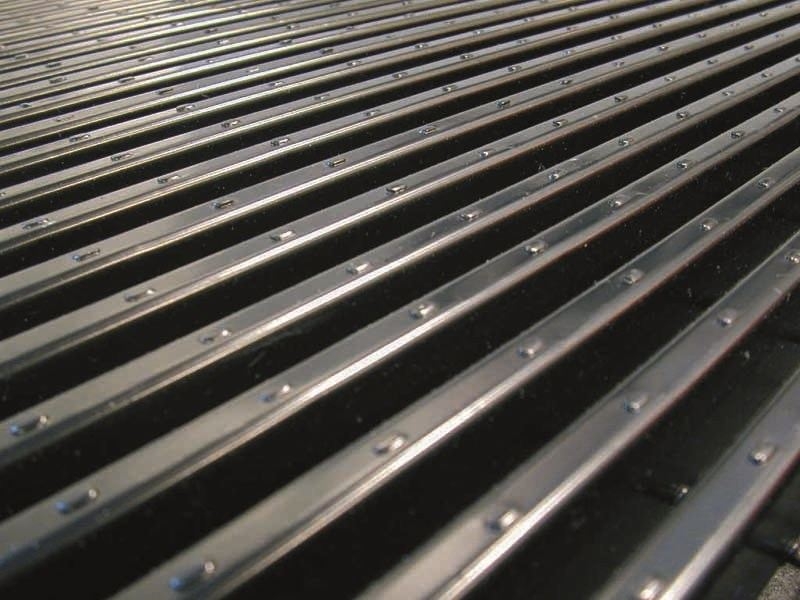

The ANTIQUUM® BARROTTO electro-welded grating represents a natural choice of quality and functionality characterized by its valued aesthetic anti-slip bearing bars. With its handcrafted look it is best suited for town centers.The service includes the possibility to produce custom-made panels, framed and shaped, supported by a skilled technical office unique in the industry.
