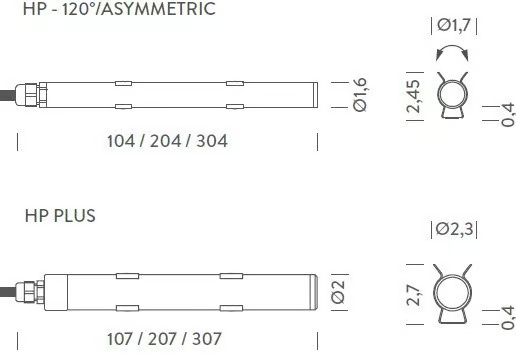

Габаритные размеры
Информация

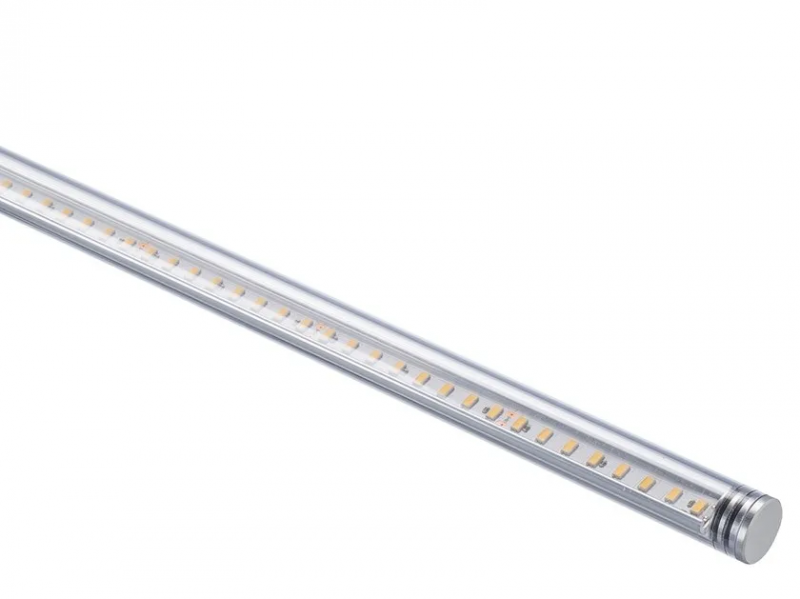

MINIFLUX is a modular LED system for indoor / outdoor suitable for cornice, decorative and accent lighting.
High-emission LED strip (24V DC) installed in an aluminium profile.
Clear polycarbonate diffuser.
Installation is realised through transparent polycarbonate clips that are adjusted for the customer’s needs.
Miniflux can be supplied in numerous lengths and colour temperatures.
Tube diameter dimensions depend on the lamp’s luminous flux.
LED driver not included.
Spot LED source
IP 65
VERSIONS
- 1m | 2700K HP / 3000K HP / 3000K HP - ASYMMETRIC / 4000K HP / 4000K HP - ASYMMETRIC | Total power 16W | 24VDC voltage
- 2m | 2700K HP / 3000K HP / 3000K HP - ASYMMETRIC / 4000K HP / 4000K HP - ASYMMETRIC | Total power 32W | 24VDC voltage
- 3m | 2700K HP / 3000K HP / 3000K HP - ASYMMETRIC / 4000K HP / 4000K HP - ASYMMETRIC | Total power 48W | 24VDC voltage
- 1m HP PLUS | 3000K / 4000K | Total power 20W | 24VDC voltage
- 2m HP PLUS | 3000K / 4000K | Total power 40W | 24VDC voltage
- 3m HP PLUS | 3000K / 4000K | Total power 60W | 24VDC voltage
