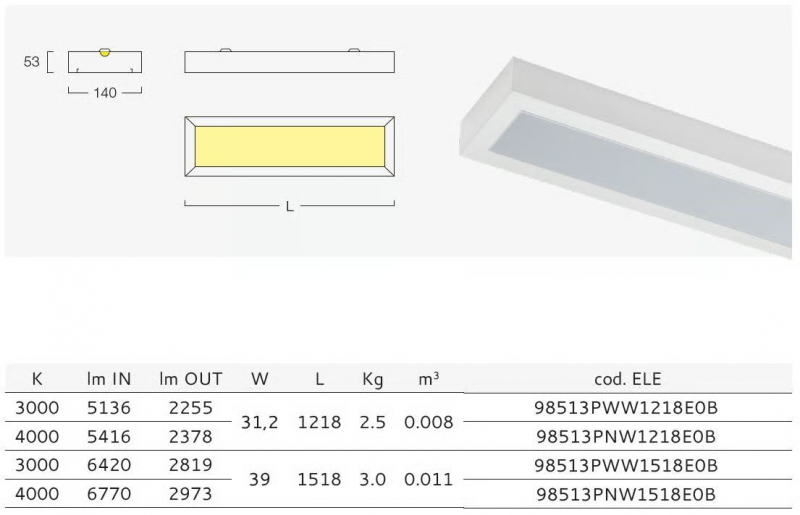

Габаритные размеры
Информация

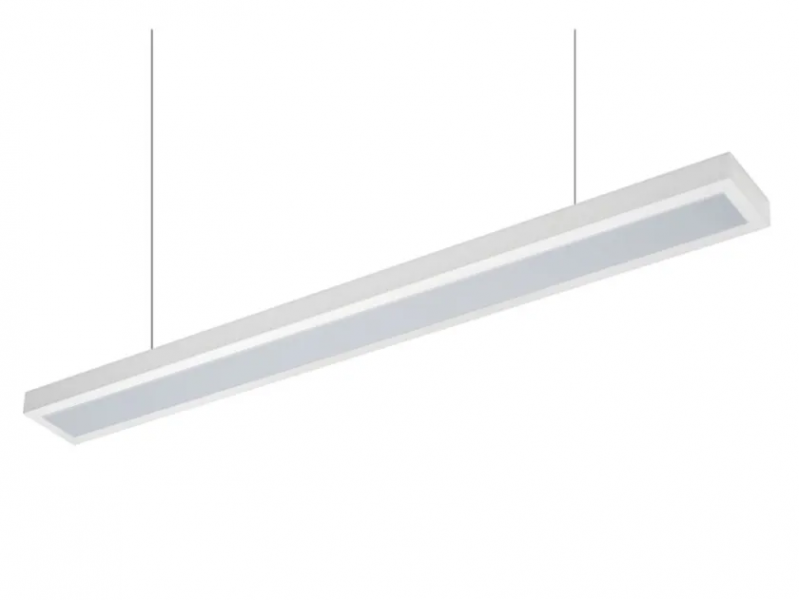

TWIN 2 9851 PO D-I LED is a pendant light with extruded aluminum body, painted with SOLVENT-FREE, semi-bright white or RAL 9006 metallised grey epoxy polyester powders, thermosetting at 180°C, after phosphate treatment. Lower diffuser in opal polycarbonate.
Mountings: Suspended fitting (by acc. 4403
4406
4402
4418)
Light emission: Direct/Indirect, Symmetric
Body: In extruded aluminium, painted with SOLVENT-FREE, semi-bright white or RAL 9006 metallised grey epoxy polyester powders, thermosetting at 180°C, after phosphate treatment
Optical device: Lower diffuser in opal polycarbonate
Light source: LED CRI ≥ 80 Ra (with opal diffuser)
• 3000K
• 4000K
• Color tolerance 3 MacAdam (3 SDCM)
• Lifetime (Ta=25°C) 50000h L80B10
Wiring: Class I
Feeding 220~240 V / 50-60 Hz
Performance data:
• Efficiency A+
• Protection level IP20
• Suitable for environments with visual display units according to the norm EN 12464-1 (UGR≤ 19)
Marks: CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST
• Dimmable electronic ballast
• DALI dimmable electronic ballast (if possible)
• Ra 90
