Wi4-eb-3e-db

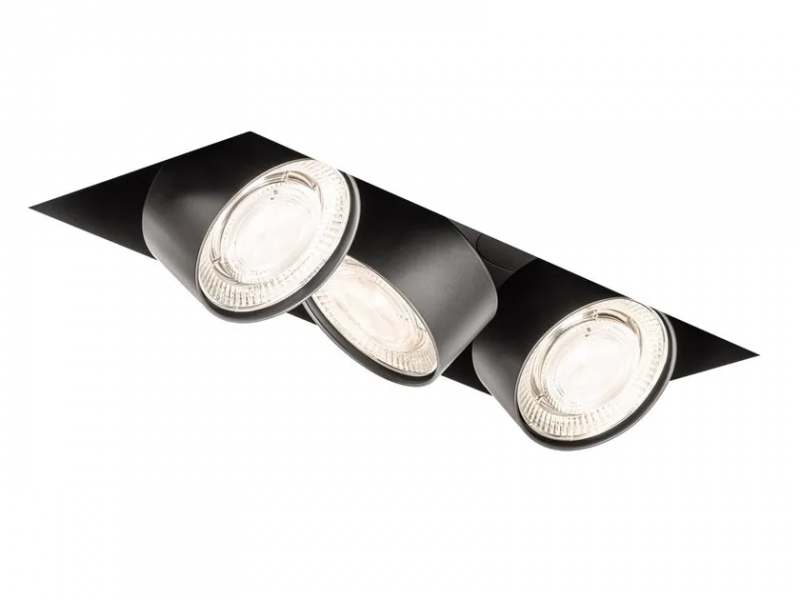

Cylindrical light head with minimalist design – no visible screws disturb the elegant appearance. The wittenberg 4.0 luminaire series achieves high luminous efficacy with compact dimensions, low energy consumption and a large, well glare-free light emission surface. Suitable for private use as well as high-performance applications due to a large number of variations and configurations. The light head is tiltable 90° and rotatable 365° to allow for individual adjustment toward ceiling, wall, or object. With the extensive selection of accessories – interchangeable optics, LSD-special diffusers, honeycombs and shutters – the beam angle and light control can be finely adjusted. A bayonet catch fastens the light head in the housing and allows for quick partial exchange. Another advantage: Ceiling-integrated components remain accessible for revision - without removing the entire housing. Standard surface finishes are powder-coated in RAL 9016 matt white or RAL 9005 matt black. Production of individual custom lights on request. Note: For the operation of the luminaire, a control gear is mandatory. The control gear is not included in the scope of delivery as standard, but can be added optionally in the configuration menu. Material aluminum powder-coated Rotatability/Slewing capacity Spotlight 365° rotatable and 90° tiltable LED module 3 × 12,7 W L90(10k) > 61.000h (IES LM-80 / TM-21) LED module dim2warm 3 × 12 WL80 (10k) > 50.000 h (IES LM-80 / TM-21) Control gear exclusive Operating area Standard-LED DC / 700 mA / Vf 18 V dim2warm-LED DC / 350 mA / Vf 36,5 V The variety and flexibility of the wittenberg system lighting family is unparalleled. wittenberg 4.0 is the system luminaire from mawa with the most variants and is very often used in customised versions. With the fourth generation of the multi-functional light head, the whole lighting series has been technically upgraded and formally minimised as far as possible. Future compatibility and sustainability are particularly important to mawa. That is why we offer the possibility to equip previous models with the light head of the latest generation 4.0. Apart from invisible cables and screws, our commitment to creating a technically perfect form is reflected in the harmonious proportions, the material thickness and the sharp radii of the corners. Especially minimalist designs such as wittenberg 4.0 live from the quality of such details. mawa places the highest demands on the surface design of its luminaires. mawa’s luminaires are powder-coated to a first-class standard: so excellently that experts sometimes thought they were wet-painted. They are usually available in matt black or matt white – and recently also in grey, beige, blue and red. On request, all RAL colours as well as high-gloss surfaces in chrome, brass, burnished brass or copper are available. Anodised surfaces are replicated with our special »mawa Eloxal« powder coating. This is not only more homogeneous, but also 100 % repeatable in colour and appearance.
