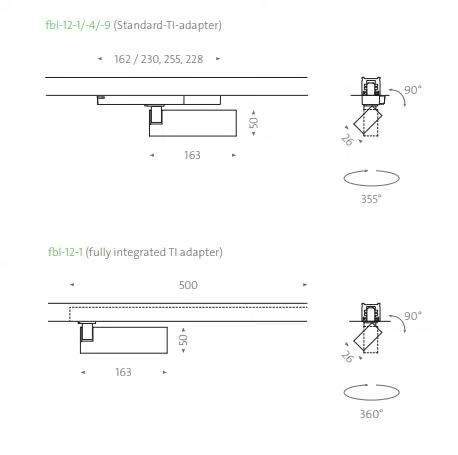

Габаритные размеры
Информация

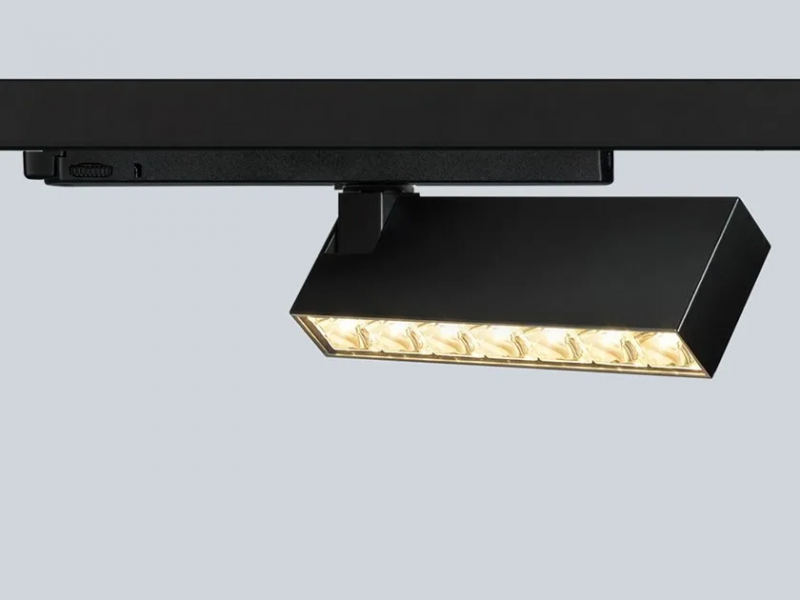

fbl-12 - this is half the size of the FlatBoxLED spotlight head without visible screws.
This series features a unique design vocabulary. Our specially developed and registered production technology (folding technology) creates precise edges with no visible connections and allows the housing to be made using a single plate. Since it is permanently
integrated into the heat sink, it increases the available cooling surface area and is therefore of thermal importance for the light.
Thanks to professional lens technology, the characteristic, square light-emitting surface creates a rotationally symmetrical beam characteristic.
Material
Aluminum powder coated
Rotatability/Slewing capacity
355° dreh- und 90° schwenkbar
LED module
15 WL90(9k) > 63.500h (IES LM-80 / TM-21)
Color rendering index
Ra > 95 (typ. 97)
Control gear
inclusive
Operating area
AC 220V–240V / 50Hz–60Hz
