Berliner ring 1 downlight

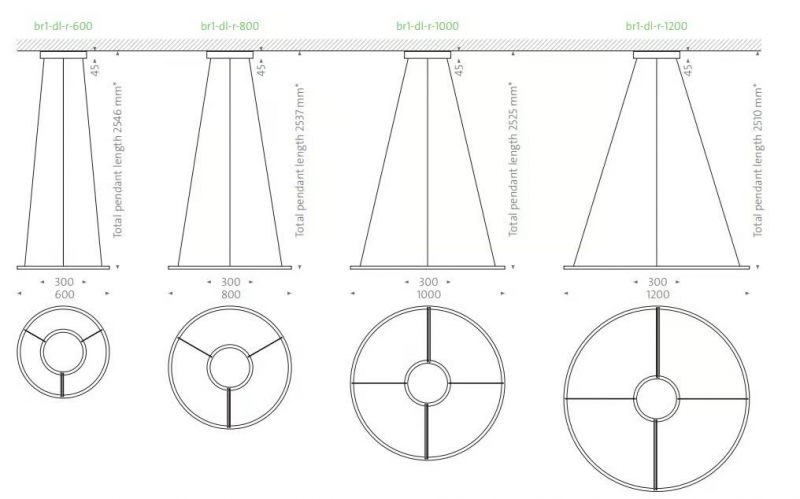

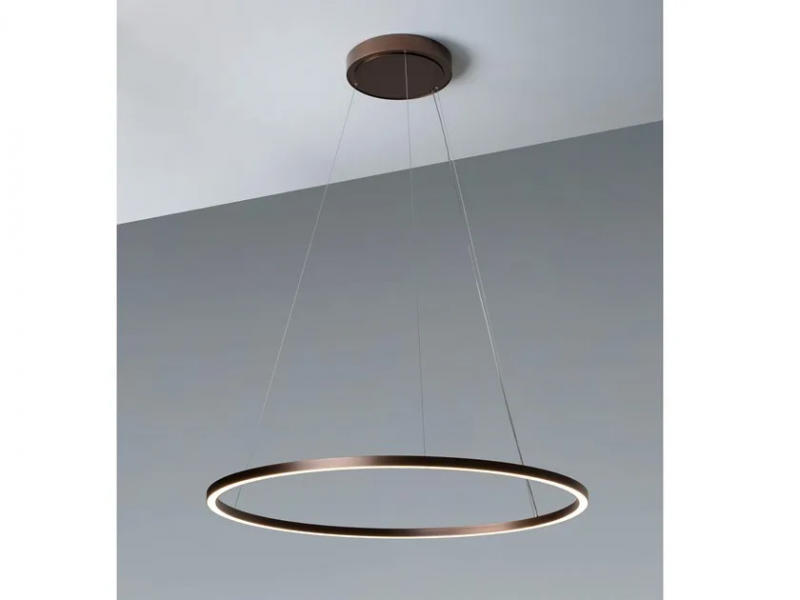

Uniform light shines through a translucent strip embedded in a narrow u-channel. On request, radii and lengths are custom manufactured by mawa. Please ask which specific sizes for circles, ovals, straight lengths, and free forms can be constructed on request. Various crown lights for numerous room situations are possible with a radius of 20 cm or more. Round lights are suspended from a central point as standard. Perpendicular suspension is available on request. Light color is selectable as well. Note: Product sizes and configurations shown are exemplary and can be customized on a project-by-project basis upon request. Material aluminum powder-coated acrylic glass one side satin (min. 3 × acrylic segments with tolerance gap) min. 3 × Reutlinger® cables (depending on size) LED module inclusive LED strip 24 V DC, 22 W per meter with 2700 K: 124 lm/W with 3000 K: 127 lm/W ∅ 600 mm: 42 W (with 2700 K) ∅ 800 mm: 55 W (with 2700 K) ∅ 1000 mm: 66,5 W (with 2700 K) ∅ 1200 mm: 81 W (with 2700 K) Operating area AC 220V–240V / 50Hz–60Hz Weight inclusive canopy large ∅ 600 mm: 2.840 g ∅ 800 mm: 3.100 g ∅ 1000 mm: 3.400 g ∅ 1200 mm: 3.680 g
