Мансардное окно RIDGELIGHT 25-40° от фабрики Velux Commercial

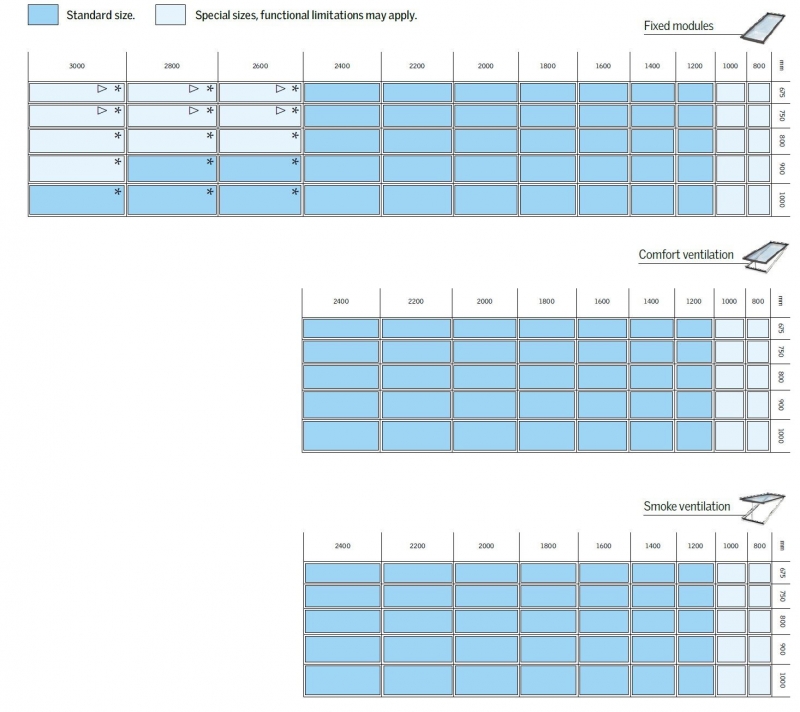

Габаритные размеры
Информация

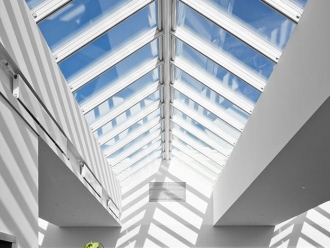

Ridgelight 25-40° is a dual pitched rooflight for installation on a flat roof or at a roof apex.
Suitable for:
Flat roof and at the top of a sloped roof
Flat roofing material
Opening width in roof min./max 1.1-4.5 m (for venting modules 1.4-4.5 m)
Rooflight installation pitch 25-40°
Key benefits:
Ensures maximum daylight and thermal comfort
Adds spaciousness to the area below
Totally self-supporting solution
Designed with architects in mind, the Modular Skylights system lets you spend more time designing solutions and less time specifying. Modular Skylights can be combined in a number of rooflight configurations, creating perfect solutions for a wide variety of building types: narrow corridors, internal courts, studios, large circulation spaces and much more. Each roof glazing solution is delivered with a special prefabricated flashing ensuring a perfect fit and 100% water tightness. Modular Skylights is the result of several years of research and design by VELUX and Foster + Partners. The combination of technology, innovation, imagination and expertise has created a flexible and beautiful skylight system that transforms any space into something special.
Velux Modular Skylights enable fast and easy installation in all weather conditions. From placing an order to delivery on-site, modular skylights are designed, manufactured, and packaged to support a streamlined installation process. The quick installation process quickly seals the glass roof and creates a more comfortable indoor working environment. Within minutes, you can mount an entire module thanks to the unique bracket system with a simple clamp. Cladding and flashing are part of the prefabricated components, built to fit. Prefabrication eliminates the need for silicone jointing, which saves time and enables year-round installation.

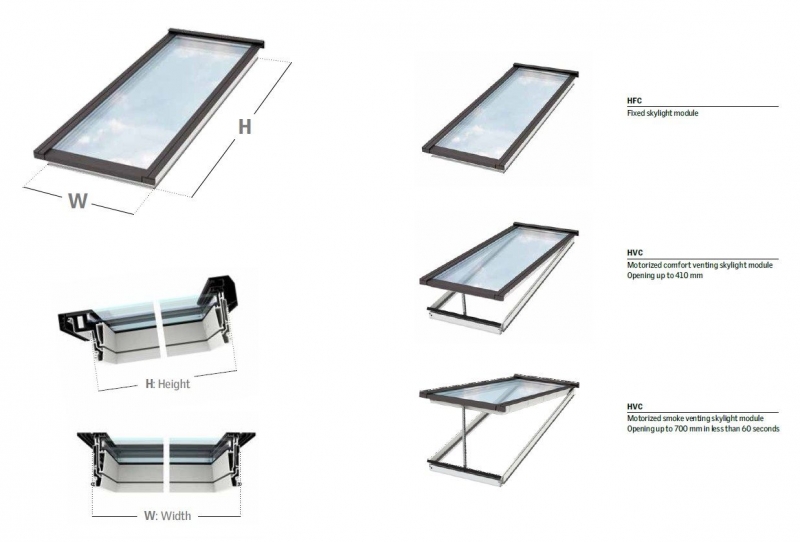

Modular Skylights system are sash-frame constructed single skylights with a high-insulating glazing unit. The modules are available as fixed and venting skylights. All individual skylights are delivered as prefabricated modules with dedicated factory finished flashings to ensure superior watertightness in every available solution. VELUX modular skylights are CE-marked in accordance with the harmonized standard EN 14351-1:2006+A1:2010 – Windows and doors. In addition the skylight modules have been tested and approved in accordance to EN 12101-2:2003 - Smoke and heat control systems –Part 2: Specification for natural smoke and heat exhaust ventilators. This means that VELUX modular skylights with ventilation capabilities may also be used as Natural Smoke and Heat Exhaust Ventilators (NSHEV). This technical handbook for VELUX modular skylights describes the product characteristics and performance of the skylight module together with sunscreening and control system.
