Ripls
ICB-50569
Настенный светильник
2020

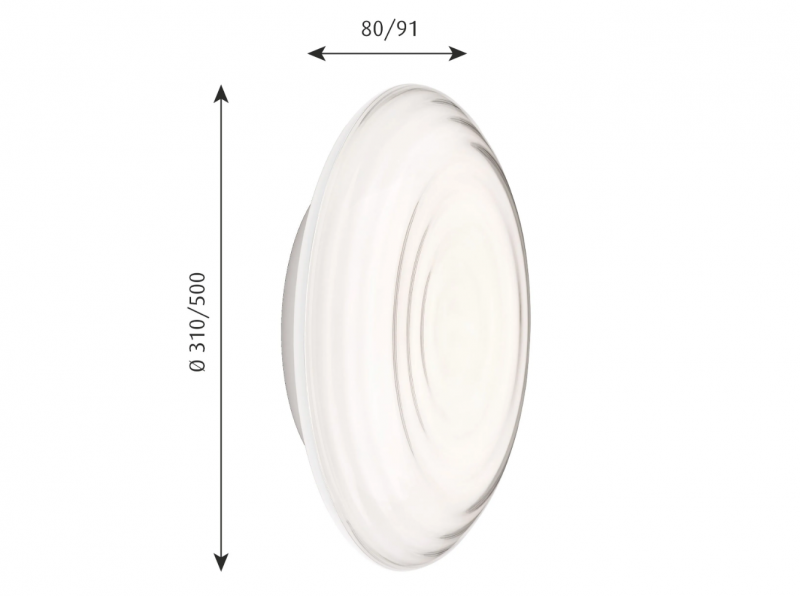

Width x Height x Length (mm); ; 310 x 80 x 310 Max 3.4 kg; ; 500 x 80 x 500 Max 3.7 kg
Габаритные размеры
Информация

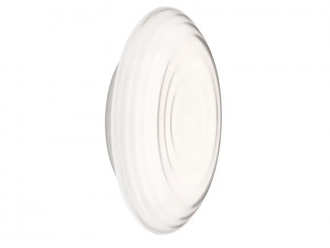

The fixture emits diffused light. The front consist of a concave clear front with ripples like rings in water. The ripples refract light in the front creating a subtle change of appearance depending on viewing angle. The concave form outline the refracting creating a higher intensity light towards the center fading off toward the edges. A diffuser offset sits deep in the fixture creating a sense of depth in the front. A slim housing creates the appearance of a floating disk while perforations in the opaque housing allows indirect light to create a halo around the fixture.
Finish
White opal diffuser and clear reflective front. Satin matt white.
Materials
Rear housing: Injection molded polycarbonate. Diffuser: Opalescent PMMA. Clear front: Clear UV resistant polycarbonate.
Mounting
Terminal strip: 1x5x2.5mm2. Cable access: 2 rear, Ø19mm or side mounting. Prepared for looping: Approved, max. 5x1.5mm2.
Light source & energy class
Energy class A++-A
Light source LED 3000K 13W
Class
Ingress protection IP20. Electric shock protection I.
