Ph 3-2½
ICB-114388

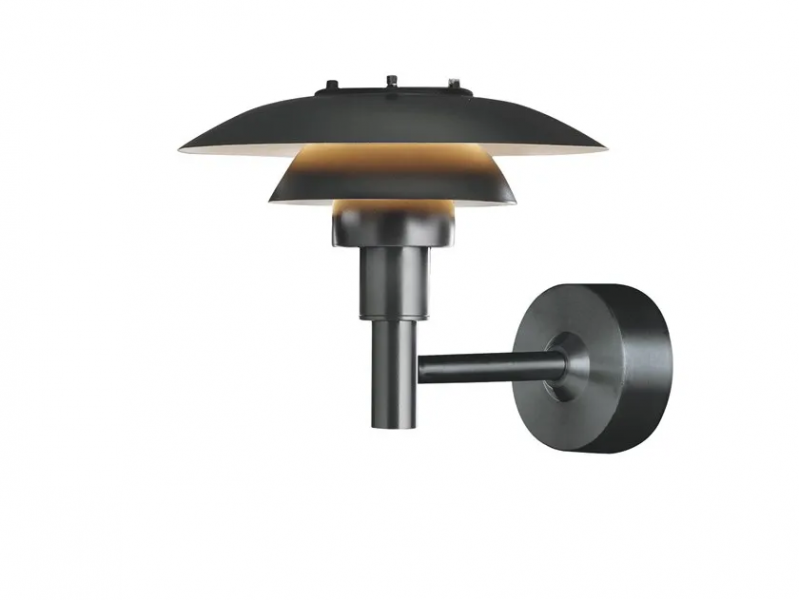

Настенный/потолочный светильник

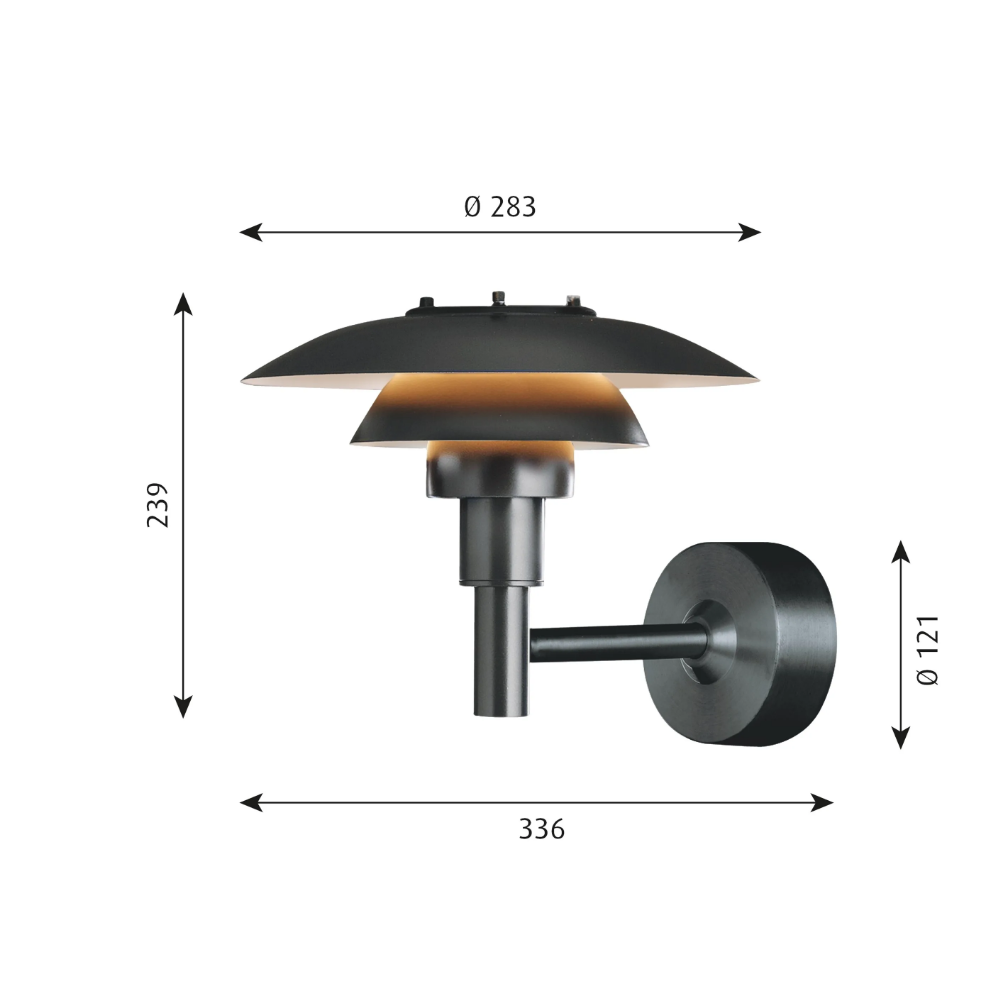

Width x Height x Length (mm); 283 x 239 x 336 Max 2.4 kg
Габаритные размеры
Информация
The fixture is designed based on the principle of a reflective three-shade system, which directs the light downwards. The shades have a matt white painted interior surface, diffusing the light in a comfortable way.
Finish
Black, powder coated.
Light source & energy class
Energy class A+ - E
Light source 1x60W E27
Materials
Top shade: Spun stainless steel. Middle/lower shade: Spun stainless steel. Shadeholder: Form pressed glass. Wall box: Die cast aluminium. Wall box cover: Spun aluminium. Arm: Stainless steel.
Class
Ingress protection IP44. Electric shock protection I w. ground.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x bottom + 3x rear entries for Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm².
Specification notes
The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
