Patera
ICB-61585
Подвесной светильник
2020

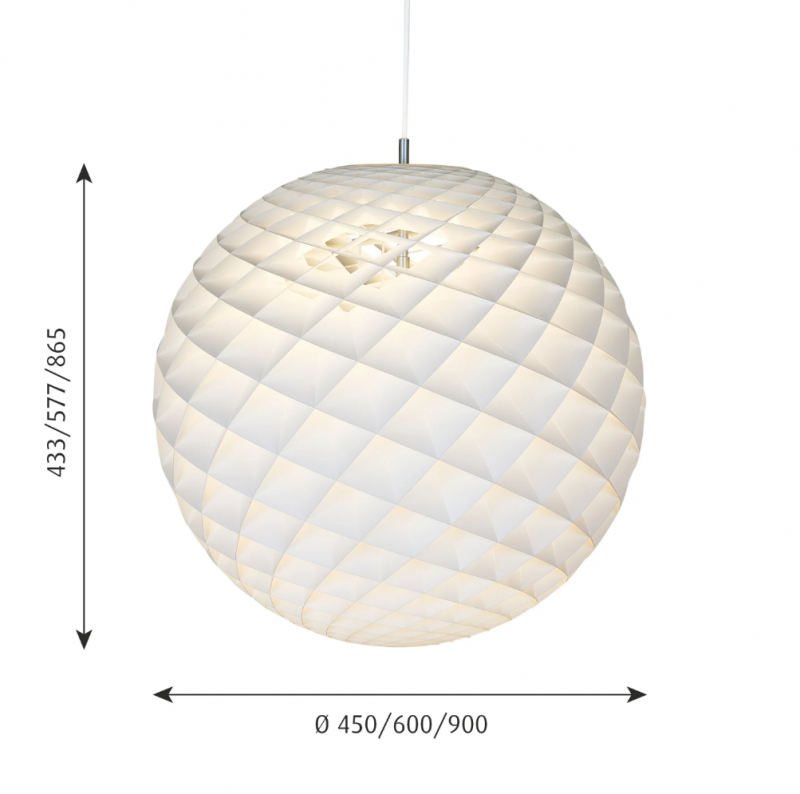

Width x Height x Length (mm); 600 x 608 x 600 Max 10.7 kg; 450 x 433 x 450 Max 3.4 kg; 900 x 865 x 900 Max 11.5 kg
Габаритные размеры
Информация

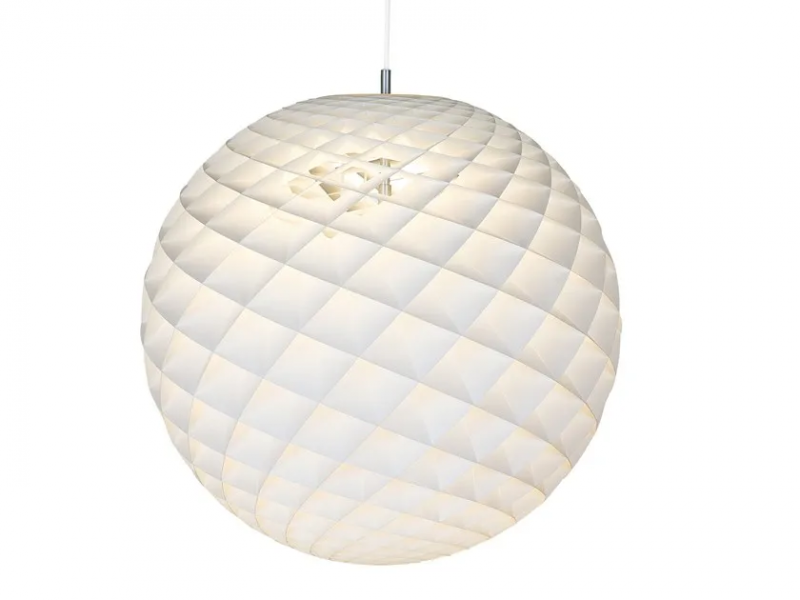

The pendant is a glowing sphere built up of small diamond-shaped cells. Each cell is carefully designed to capture light and to shield the light source from the viewing angles above 45 degrees. Each cell glows. Below 45 degrees, the fields are open to direct light downwards. A small amount of light is also sent upwards to illuminate the ceiling.
Mounting
E27 (Ø450/Ø600): Suspension type: Cable, 2 x 1.0 mm2. E27 (Ø900): Suspension type: 3x1mm² and wire. Canopy: Yes. Cord length: 4m. LED (Ø450/Ø600/900): Suspension type: Cable, 2 x 0.75 mm2 and wire. Canopy contains driver. Cord length: 4m.
Light source & energy class
Energy class A++ - A
Light source LED 3000K 65W
Finish
White, matt coated
Materials
Shade: Cut matt PVC. Suspension: E27: Matt-chromed brass and die cast acrylic. LED: Matt white.
Class
Ingress protection IP20. Electric shock protection I w. ground. Ø480 and Ø600 E27: II w/o ground.
