Munkegaard
ICB-65145
Потолочный светильник
2020
Width x Height x Length (mm); ; 265 x 30 x 265 Max 2.0 kg; ; 460 x 30 x 460 Max 3.6 kg; ; 525 x 30 x 525 Max 4.5 kg
Габаритные размеры
Информация

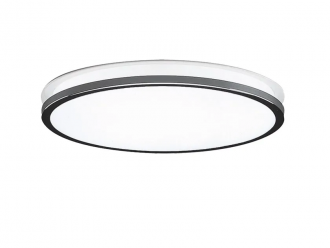

The fixture looks like a disc hovering just below the ceiling – an impression primarily created by the illuminated opening and the suspended placement of the fixture below the mounting surface. The 2-layer glass/acrylic shade ensures uniform, gently diffuse lighting. This fixture gives the room the illusion of extra height.
Finish
High lustre chrome plated or satin chrome plated. Matt-white acrylic/toughened clear glass.
Materials
Shade: 2-layer: matt-white acrylic and toughened glass. Edge ring: High lustre chrome plated or satin chrome plated, brass.
Mounting
Connection: Ø 265/Ø 460/Ø 525: Terminal strip 5x2.5mm². Ceiling thickness: Ø 265/ Ø 460/Ø 525: 1–50mm. Cut-out dimensions: Ø 265: 245mm, Ø 460: 440mm, Ø 525: 505mm. Looping: Approved, max. 5x1.5mm².
Class
Ingress protection IP20. Electric shock protection I w. ground.
Light source & energy class
Energy class
Light source LED 3000K 15W
Specification notes
Ø 265, Ø 460: Option for Switch-Dim with DALI driver. Ø 525: For Switch-Dim, contact Louis Poulsen.
