Lp grand
ICB-50878
Настенный светильник
2020

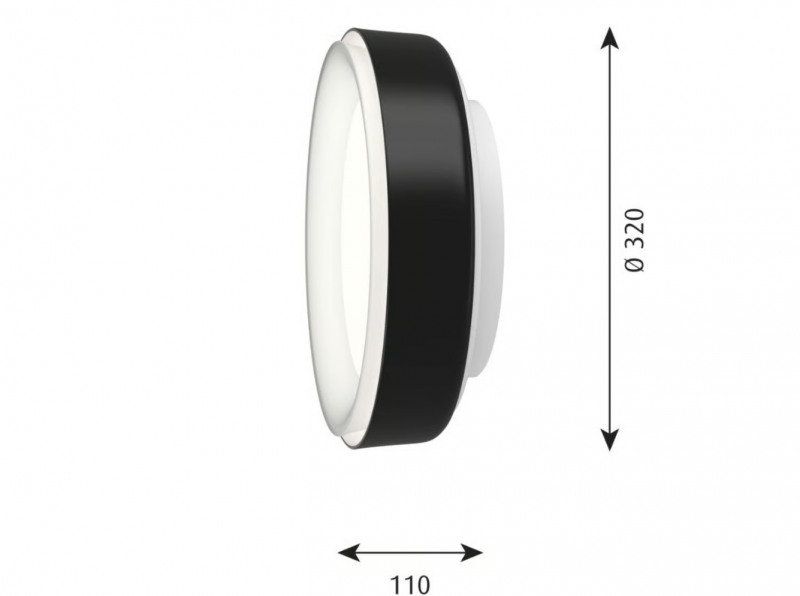

Width x Height x Length (mm); 580 x 160 x 580 mm - Max 5.9 kg; 320 x 90 x 320 mm - Max 0.0 kg
Габаритные размеры
Информация

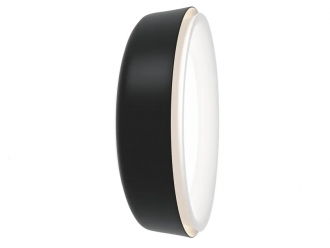

The circular luminaire is perceived as a set of coinciding rings based around a centrally positioned horizontal diffuser. A large angled reflector circumferences the diffuser and reduces the contrast around the edge. A revolved top reflector is perfectly curved to distribute uplight in a wide angle. A coloured outer shade surrounds the reflector and creates an interreflection of light resulting in a graceful glow of light on the outside of the top and bottom reflector. In total, it creates four rings of light surrounding the central diffuser.
Finish
Reflector: Mat white satin finish, Outer shade (outside): Mat (Black and Champagne) or gloss (white), wet painted surface, Diffuser: Glossy.
Materials
Top reflector: Ø 580: ABS, Ø 880/Ø 1480: PE, Bottom reflector: PE, Housing Ø 580: ABS, Ø 880/Ø1480: PE, Outer shade: Ø 580/Ø 880: ABS, Ø 1480: PUR, Diffuser: PMMA.
Class
Class: Ingress protection IP20. Electric shock protection I w. ground.
Mounting
Wall bracket Ø 580: Yes, Ø 880/Ø 1480: No. Looping: No.
Light source
Light source LED 3000K 59W - Lumen: 5159
