Lp circle
ICB-117074
Потолочный светильник

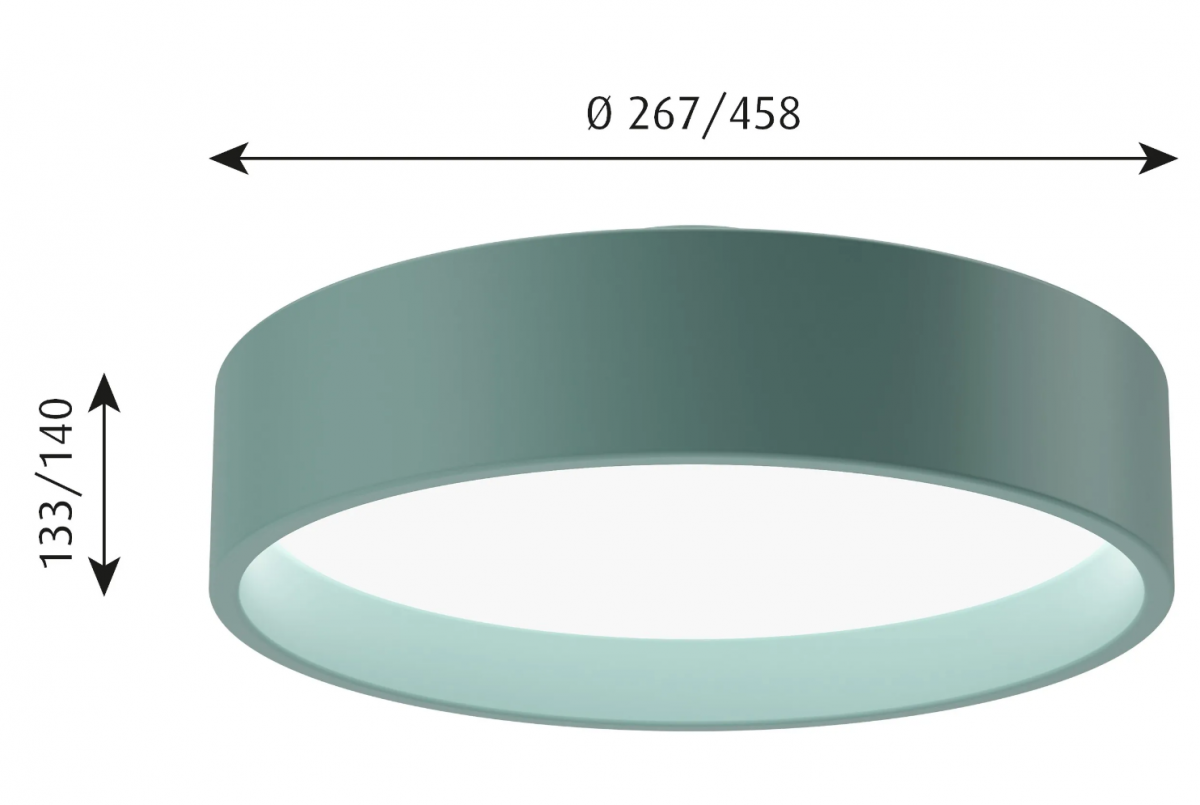

Width x Height x Length (mm); ; 269 x 133 x 269 Max 2.5 kg; ; 267 x 133 x 267 Max 2.4 kg; ; 458 x 140 x 458 Max 4.6 kg
Габаритные размеры
Информация

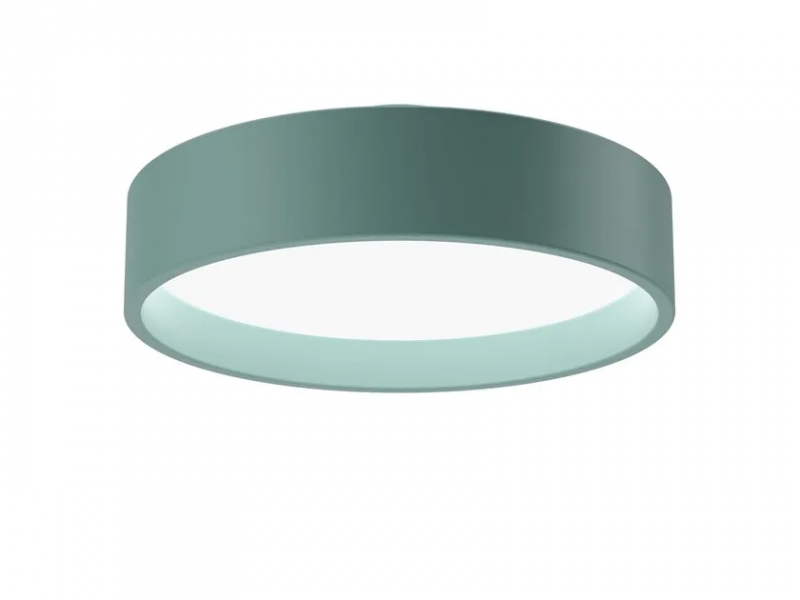

The fixture emits diffuse light via a high-efficiency acrylic diffuser. The diffuser, which is encircled by a voluminous coloured or white ring, is hidden when viewed from low angles. Angling the inner side of the reflector ring 5° creates a comfortable and decorative graduation of the light from the diffuser. The luminaire ‚floats‘ 34 mm below the ceiling, creating a visual lightness.
Finish
White, Black, Pale Petroleum or Yellow. Powder coated.
Materials
Reflector: Extruded aluminium. Diffuser: Acrylic, frosted. Top: Aluminium.
Mounting
Directly on ceiling. Built-in driver. Terminal strip: 5x1.5mm2. Looping: Approved, max 5x1.5mm2. Cable entries: Rear, Side-mounted.
Light source & energy class
Energy class
Light source LED 3000K 13W
Class
Ingress protection IP20. Electric shock protection I.
Specification notes
The driver is built into the fixture All LED power measurements are measured as system power.
