Kipp
ICB-85702
Настенный/потолочный светильник
2020

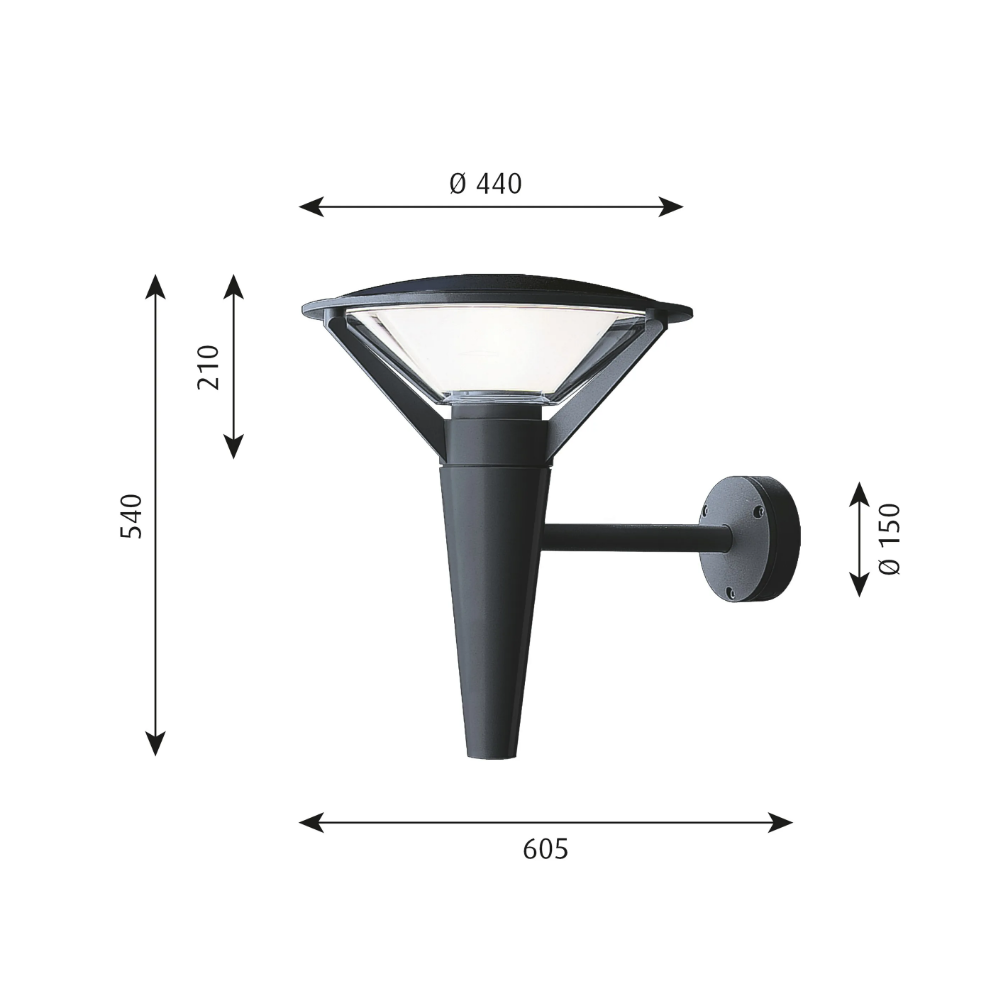

Width x Height x Length (mm); 440 x 540 x 605 Max 7.3 kg
Габаритные размеры
Информация
The fixture emits symmetrical light directed downward. The relation between the slightly curved top shade and the angle of the inner opal diffuser ensures a wide non glare light distribution.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x rear and 2x bottom entries, Ø 20mm. Looping: Approved, max. 3x1,5mm².
Light source & energy class
Energy class
Light source LED 3000K 28W
Finish
Aluminium coloured with textured surface or graphite grey, powder coated.
Materials
Diffuser: Injection moulded white opal acrylic. Top shade: Die cast aluminium. Enclosure: Injection moulded clear polycarbonate. Frame: Die cast aluminium. Wall box: Die cast aluminium. Arm: Extruded aluminium.
Class
Ingress protection IP55. Electric shock protection I w. ground. IK10.
