Flindt
ICB-106119
Садовый фонарь

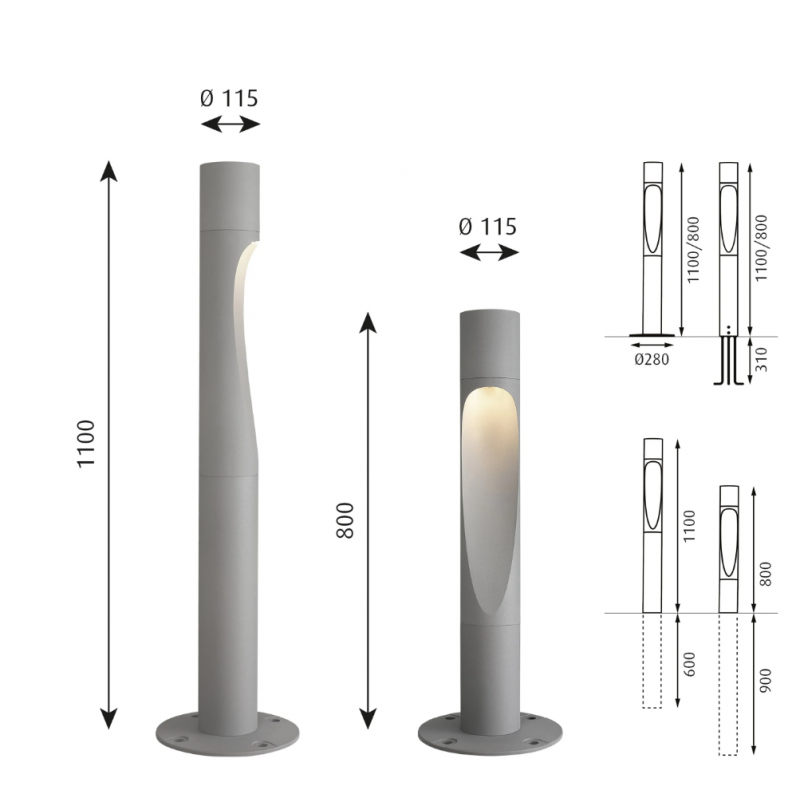

Width x Height x Length (mm); 115 x 800 x 115 Max 9.8 kg; 115 x 1100 x 115 Max 11.0 kg
Габаритные размеры
Информация
The fixture emits an asymmetrical non glaring wide light directed downwards. The light creates an organic pattern on the surface where the bollard is mounted.
Mounting
Terminal block position: In the top. Looping: Approved, max. 5x6mm². Driver position: In the top. Post f/in ground installation: H: 1700mm incl. fixture head, in ground part 600 or 900mm. Post w/anchorage unit: H: 1110/1410mm incl. fixture head, in ground anchorage unit 310mm. Post w/base plate for surface mounting: H 800/1100mm incl. fixture head. Post dia. Ø115mm.
Specification notes
The LED driver is integrated in the fixture head. All LED efficiency information are measured as system power.
Finish
Aluminium coloured or corten coloured. Textured surface, powder coated.
Light source & energy class
Energy class
Light source LED 3000K 15W
Materials
Top: Cast aluminium. Reflector part: Cast aluminium. Post: Extruded aluminium. Base plate: Cast aluminium.
Class
Ingress protection IP65. Electric shock protection I w. ground, II w/o ground. IK10.
