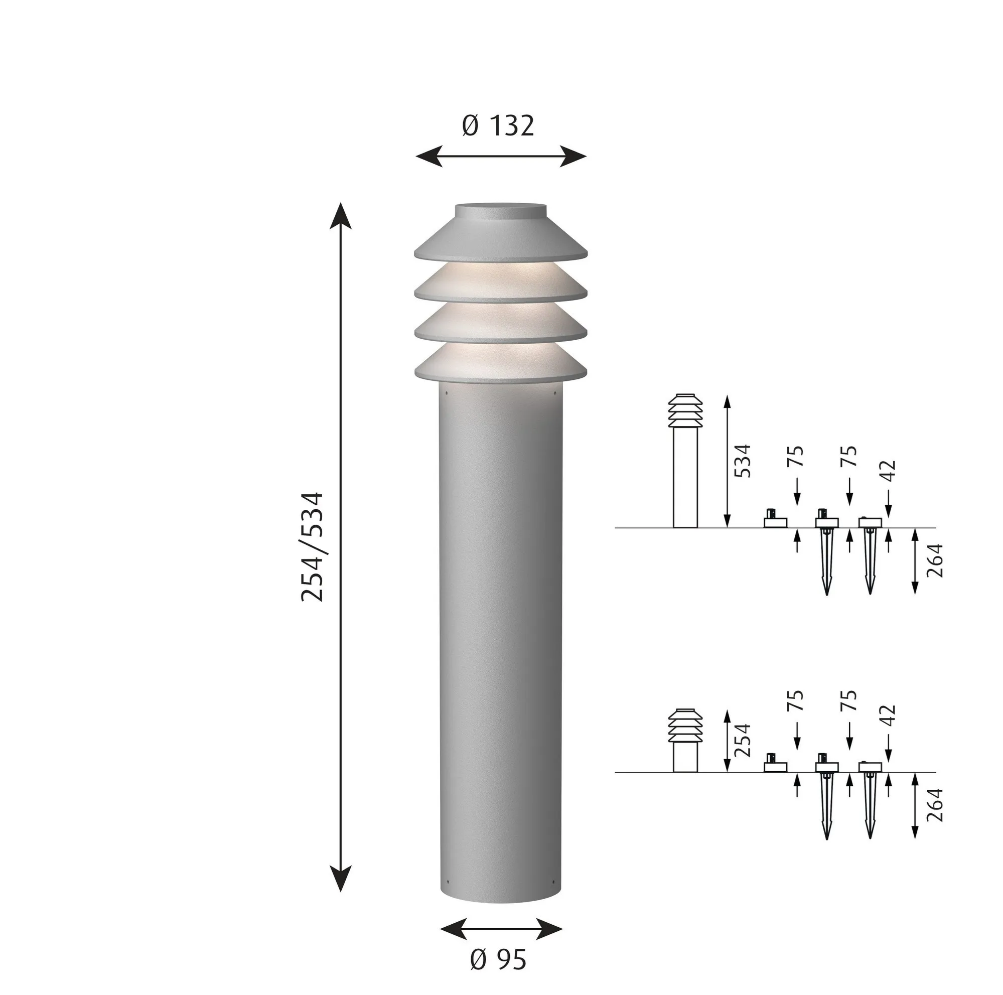

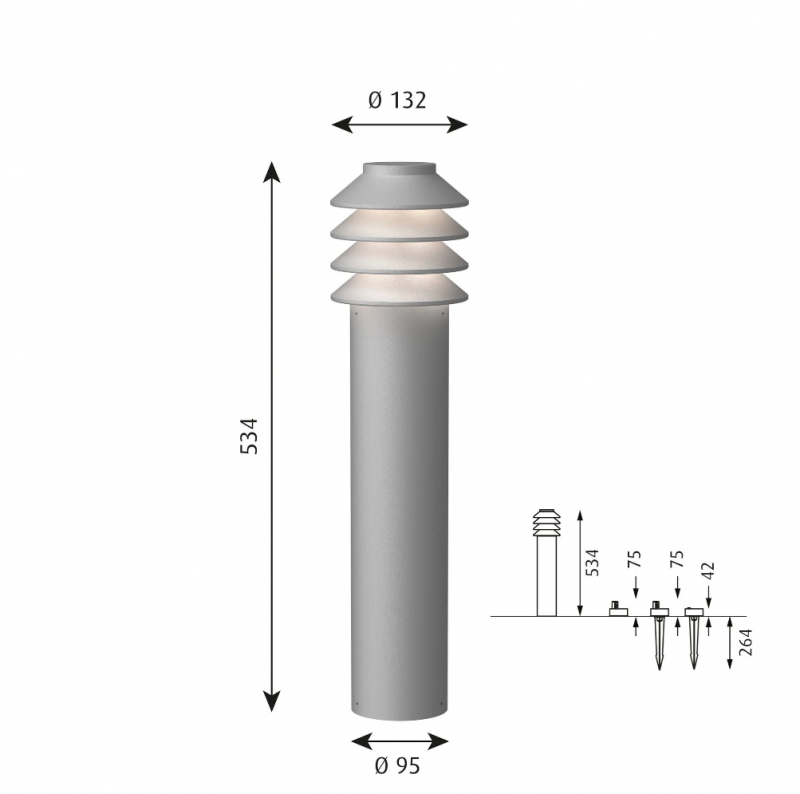

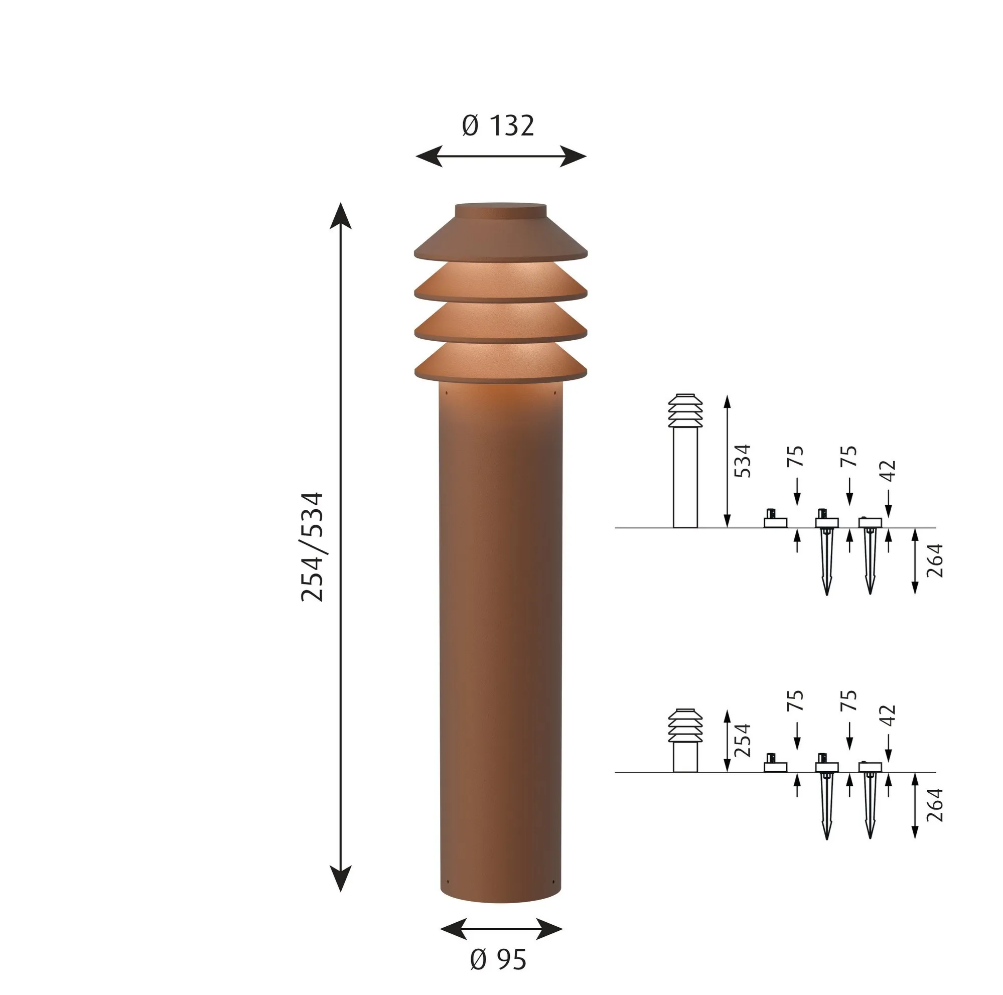

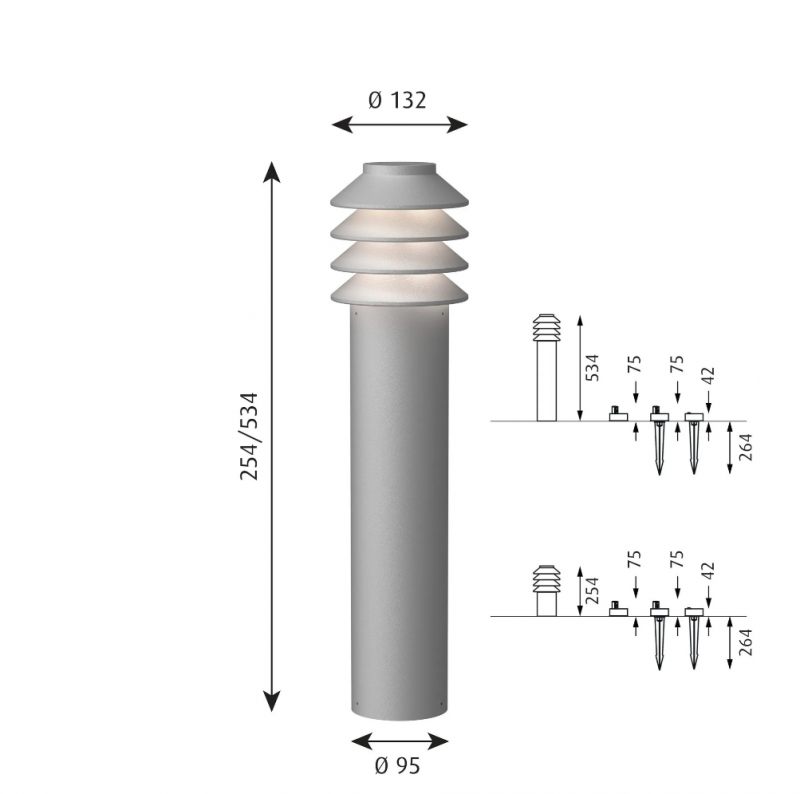

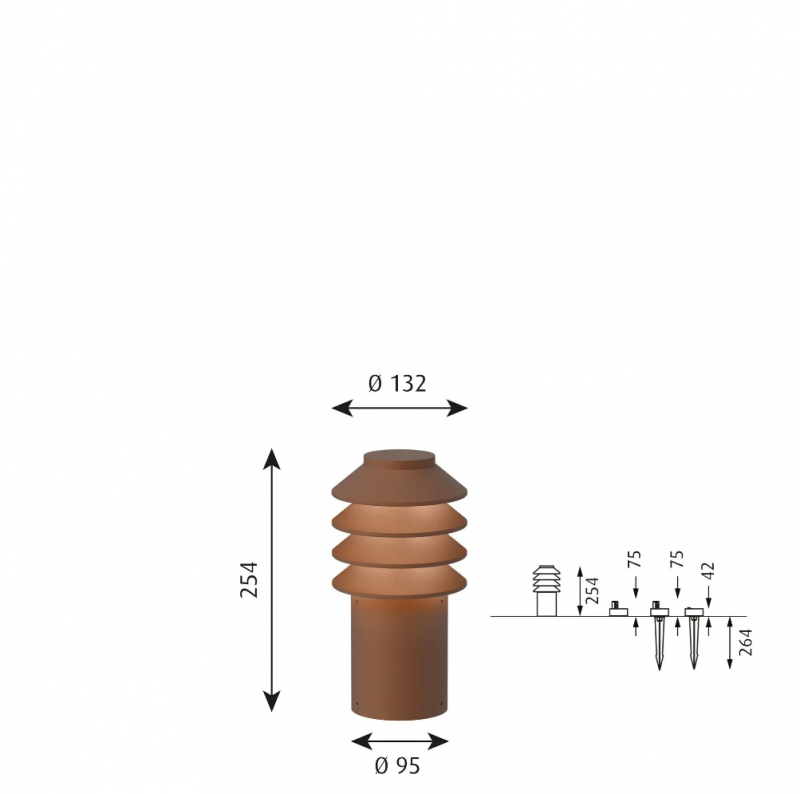

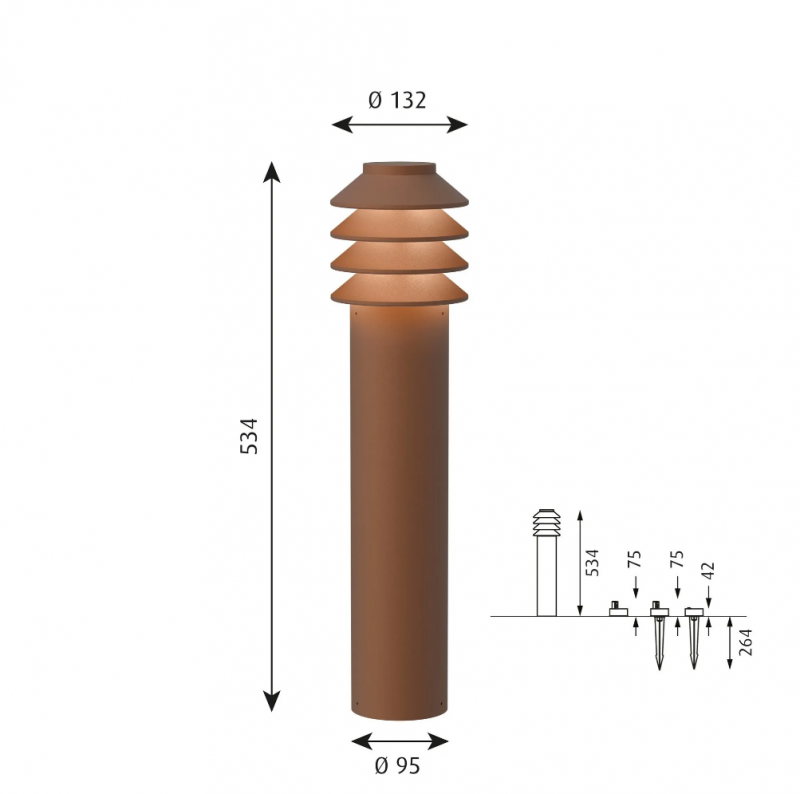

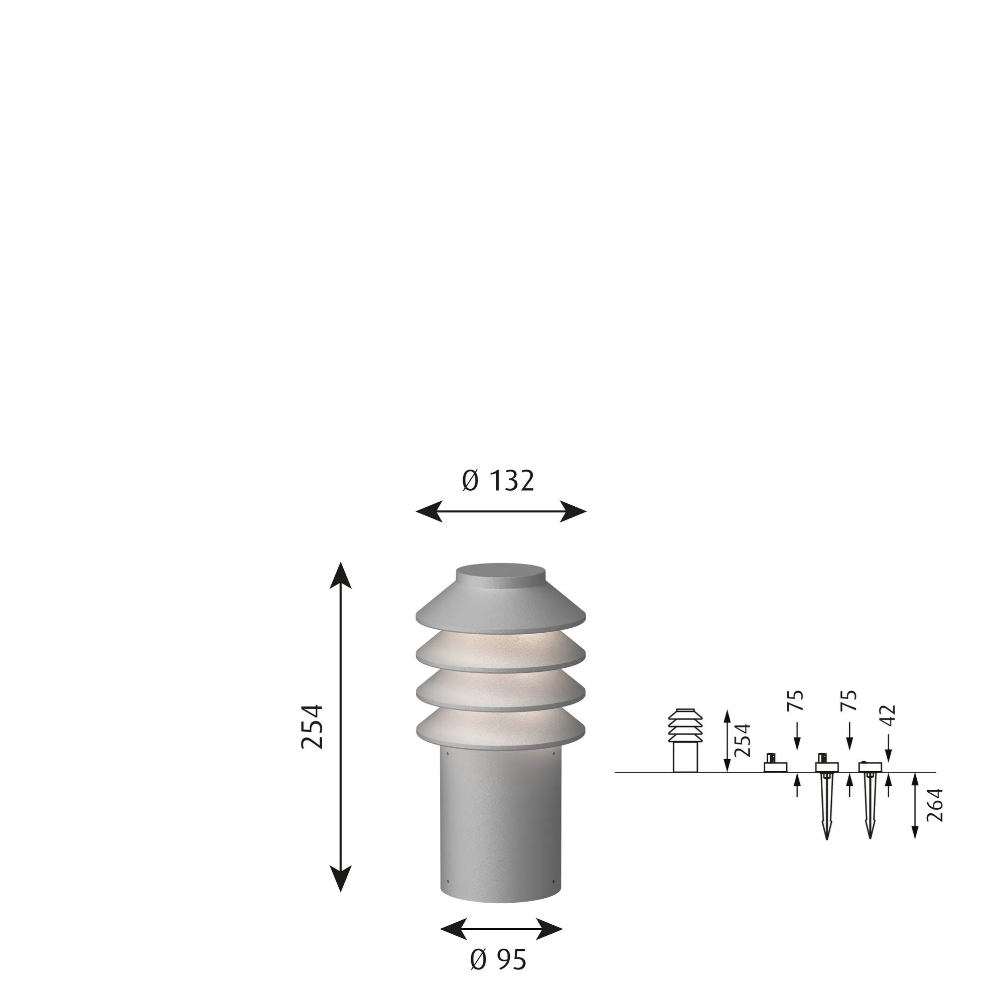

Габаритные размеры
Информация

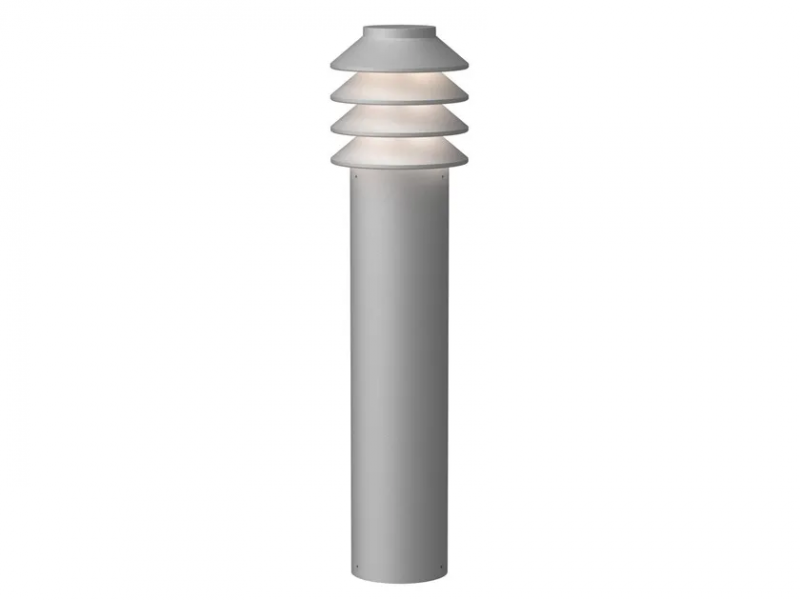

The fixture has a round symmetrical design with four rings reflecting the light in a soft downward direction. The rings have a soft glow while their white underside achieve optimal light reflection and produce a characteristic symmetric light pattern on the ground.
Information
The adapter is positioned externally from the fixture and can run up to 4 bollards. Maximum distance to last bollard is 30m. Spike: Uses standard cables and connectors which are supplied. Plug and play. Anchor/Base: Use installation cable for legal fixed installation. Adapter requires installation by certified electrician if used with anchor or base.
Materials
Top: Cast aluminium. Reflector part: Cast aluminium. Post: Extruded aluminium. Base plate, spike and anchor: Cast aluminium. Diffuser: PC
Class
Ingress protection w/spike: IP 65 Ingress protection w/anchor: IP 65 (Head), IP44 (Anchor) Ingress protection w/base plate: IP 65 (Head), IP44 (Baseplate) Electric shock protection III IK06
Finish
Aluminium coloured or corten coloured. Textured surface, powder coated.
Light source
Light source LED 3000K
