Bysted
ICB-92491
Садовый фонарь
2020

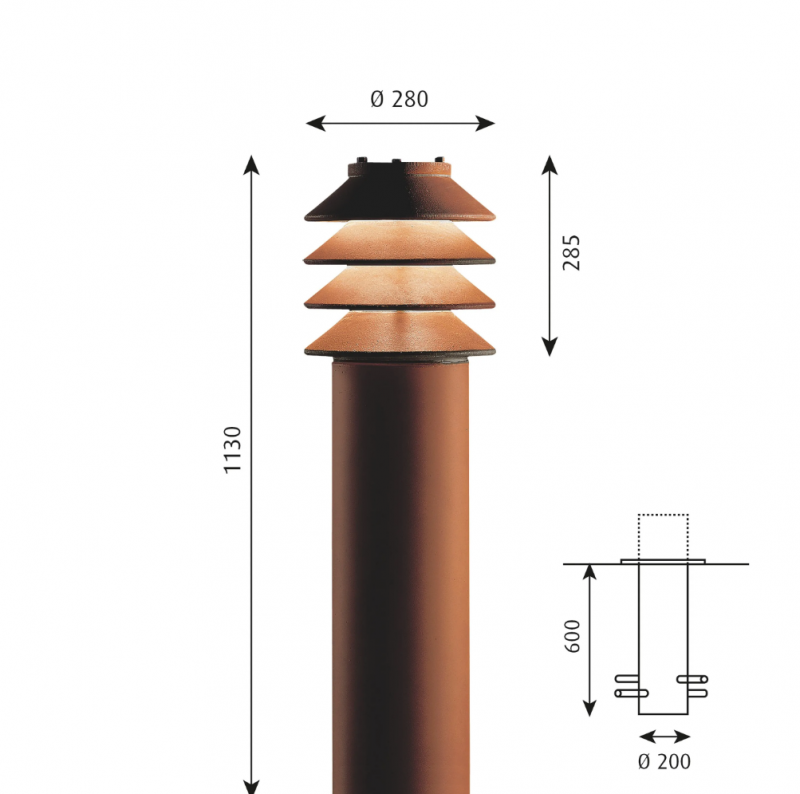

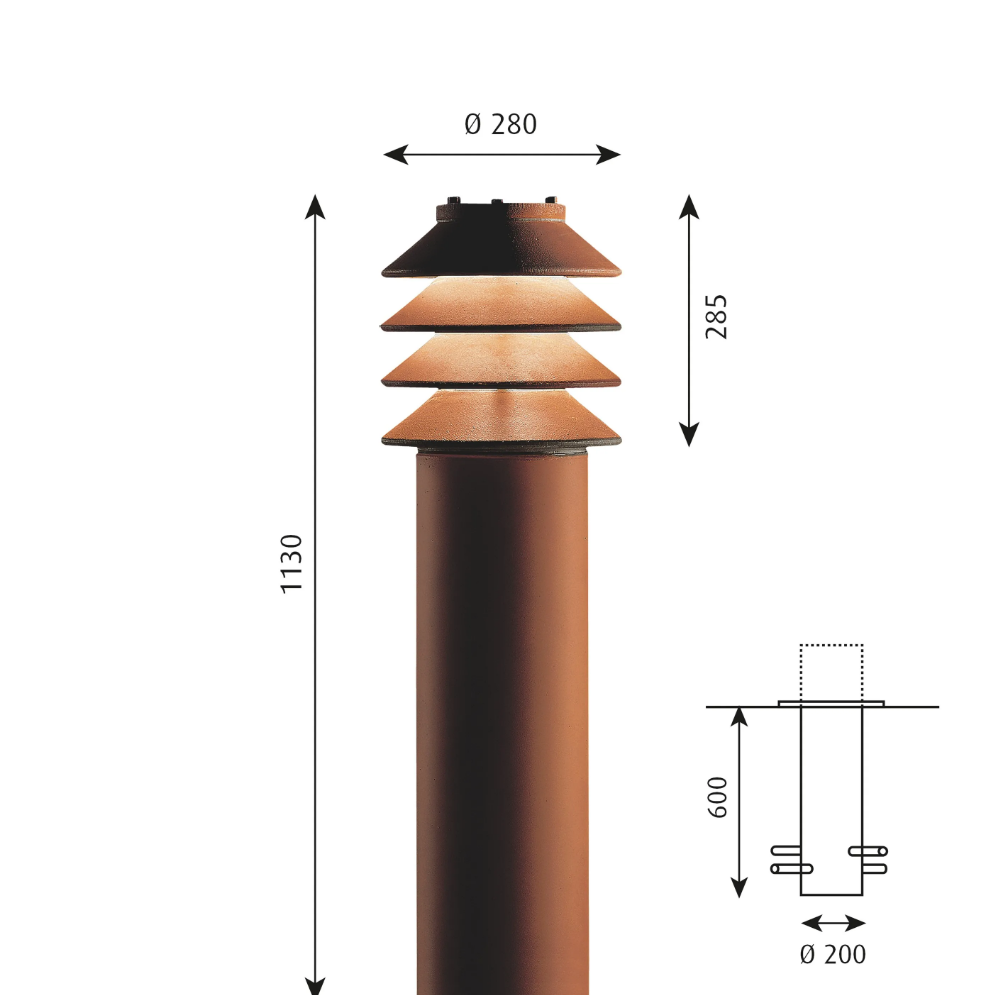

Width x Height x Length (mm); 280 x 1130 x 280 Max 44.5 kg
Габаритные размеры
Информация

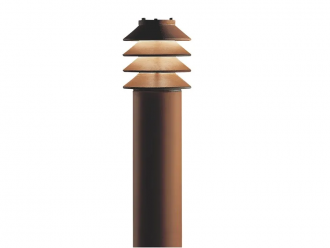

The fixture emits light directed downwards. The shades have a white painted undersurface to achieve optimal light reflection and produce a characteristic symmetric light pattern around the fixture.
Mounting
In-ground struts: Yes. Terminal block positioning: In post. Looping: Approved, max 5x6mm². Driver position: In pole top. Max. installation cable: Depending on junction box. Post f/in-ground installation: H: 1445mm excl. fixture head, in-ground part: 600mm. Post w/base plate for surface mounting: H: 845mm excl. fixture head. Post dia. 200mm.
Light source & energy class
Energy class
Light source LED 3000K 24W
Finish
Corten steel, raw.
Materials
Fixture head: Die cast iron. Post: corten steel. Base plate: corten steel.
Class
Ingress protection IP65. Electric shock protection II w/o ground. IK09.
