Al 600
ICB-86620
Открытый потолочные светильники
2020

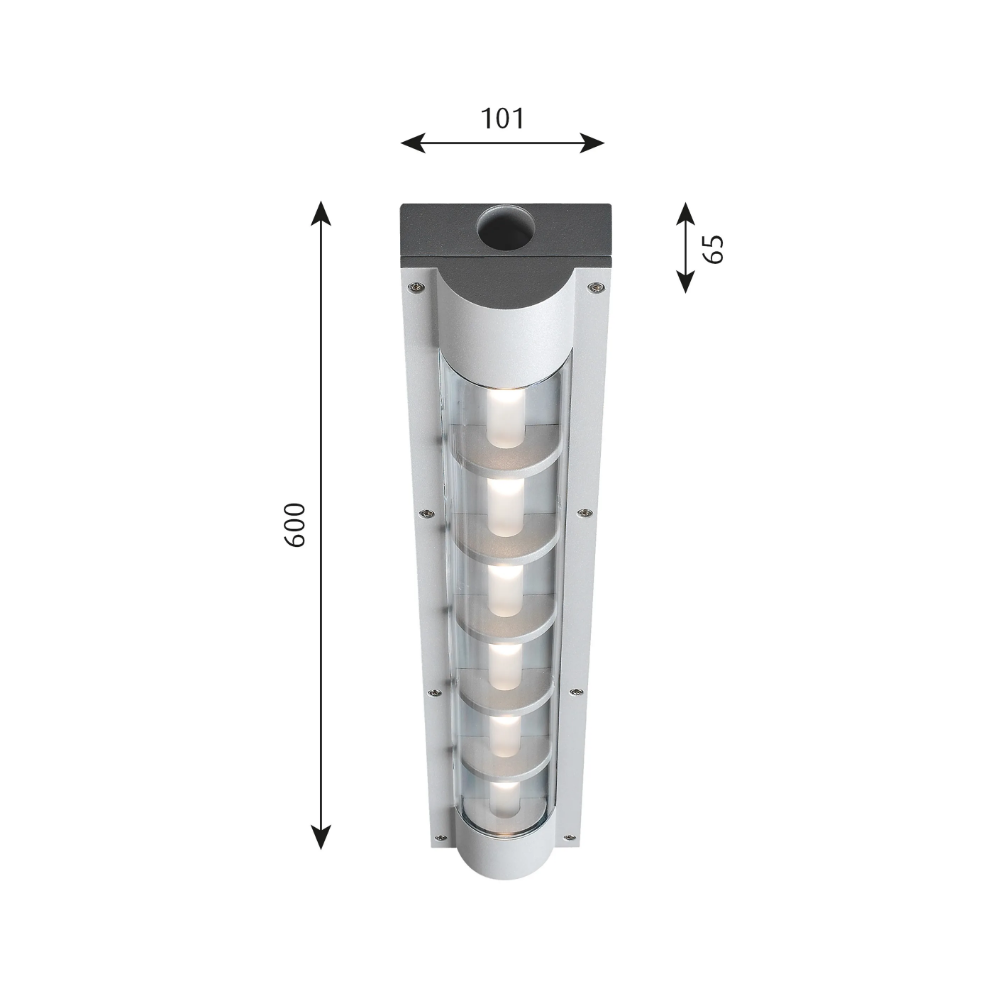

Width x Height x Length (mm); 103 x 65 x 600 Max 3.4 kg
Габаритные размеры
Информация
The fixture has a very wide beam width. The light distribution is optimized for lighting in narrow surroundings like tunnels and arcades. The design is low and sturdy.
Mounting
Looping: Approved, max 5x2,5 mm2. Integral ballast. Installation cabel: 8-13mm. (not enclosed).
Light source & energy class
Energy class
Light source LED WER K 7.6W
Finish
Aluminium coloured with textured surface, powder coated.
Materials
Housing: Die cast aluminium. Diffuser: Polycarbonate.
Class
Ingress protection IP65. Electric shock protection II w/o ground. IK10.
