Aj eklipta
ICB-50284
Настенный светильник
2020

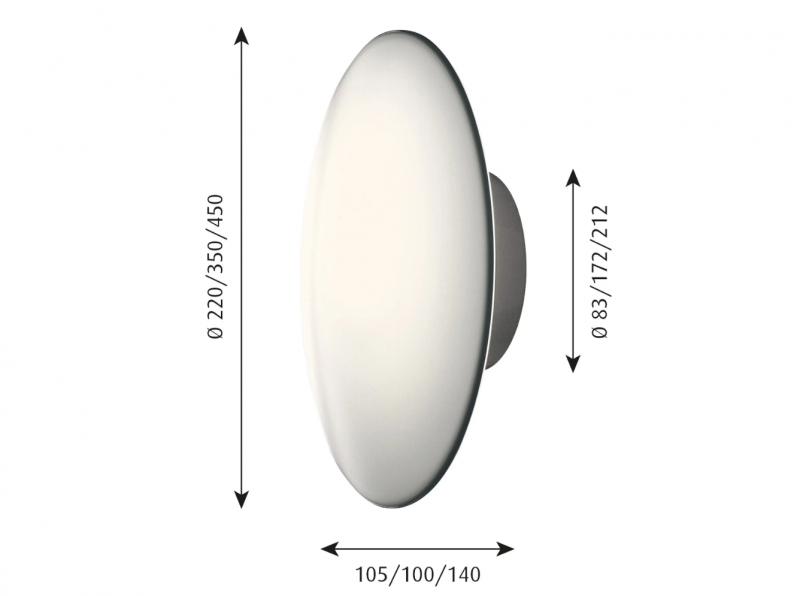

Width x Height x Length (mm); ; 220 x 105 x 220 Max 0.6 kg; ; 350 x 100 x 350 Max 3.6 kg; ; 450 x 100 x 450 Max 6.2 kg
Габаритные размеры
Информация

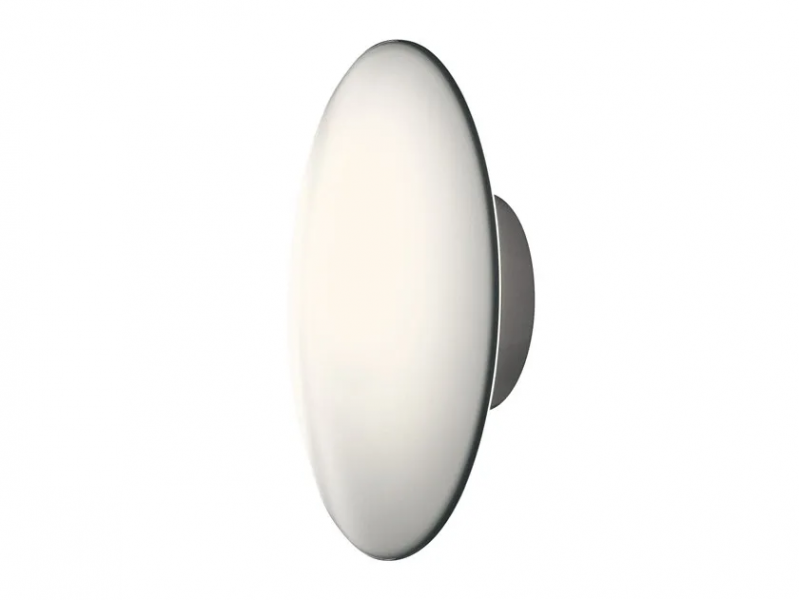

The fixture emits soft comfortable light. The glass is designed to provide a uniformly lit surface. The three-layer mouth-blown opal glass shade has a transparent edge, providing a decorative halo of light around the fixture.
Finish
White, powder coated. White opal glass.
Materials
Ceiling/Wall box: Die cast aluminium or spun aluminium. Diffuser: Mouth-blown white opal glass.
Mounting
Terminal block: Ø 220: 3x2,5mm², Ø 350/Ø 450: 5x2,5mm². Looping: Approved, Ø 220 mm: Max. 3x1,5mm², Ø 350/Ø 450: Max. 5x1,5mm². Ballast positioning: In ceiling/wall box.
Class
Ingress protection. LED ceiling/wall: IP20. Ø220: IP20. E27 Ø350/450 Ceiling: IP20. E27 Ø350/450 Wall: IP44. Electric shock protection I w. ground.
