Aj 50
ICB-85676
Настенный/потолочный светильник
2020

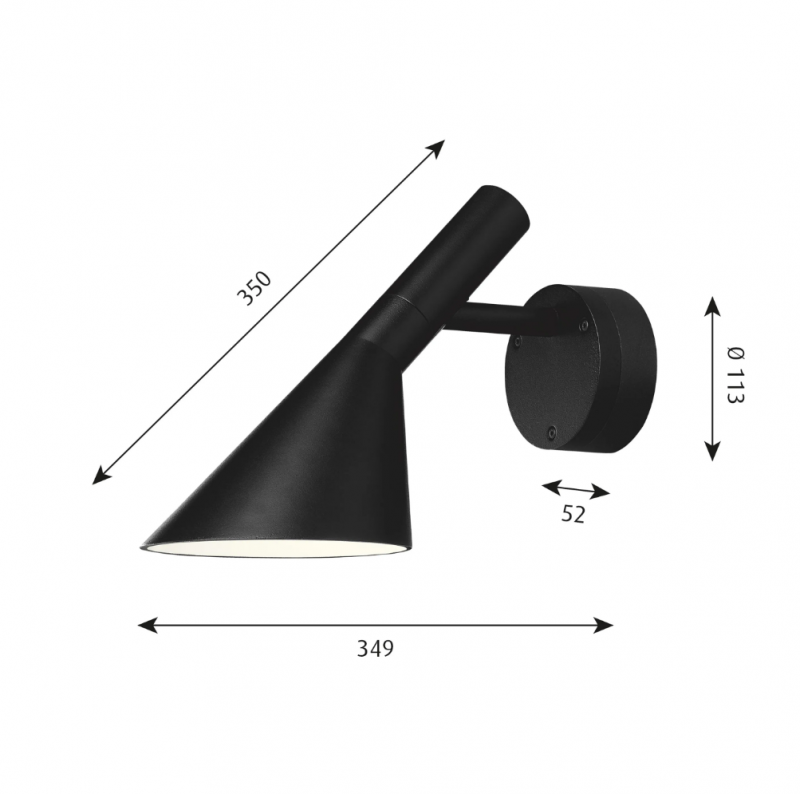

Width x Height x Length (mm); 349 x 248 x 160 Max 2.0 kg
Габаритные размеры
Информация
The fixture emits downward directed light. The shade is painted white on the inside to ensure a soft comfortable light distribution.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x bottom + 3x rear entries for Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm².
Specification notes
1. AJ 50 Wall has a LED light source that can be connected directly to the main power supply. 2. All LED efficiency information are measured as system power.
Finish
White, black or aluminium coloured with textured surface, powder coated.
Light source & energy class
Energy class A++ - A
Light source LED 3000K 7.6W
Materials
Shade: Die cast aluminium. Wall box: Die cast aluminium. Arm: Die cast aluminium.
Class
Ingress protection IP65. Electric shock protection I w. ground. IK06.
