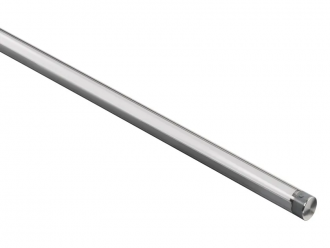

Linear profile for outdoor and underwater applications
surface mounted (ceiling, wall, floor)
Power: optics version: 21W, diffuse version: 32W, RGB version: 37W
Power supply: 24Vdc
Lumen output at source: 1856 lm (3000K, optics version), 3444 lm (3000K, diffuse version), RGB: 1676 lm, R: 372 lm G: 1071 lm B: 233 lm (diffuse version)
Delivered lumen output: 1512 lm (3000K, 40°), 1728 lm (3000K, diffuse version), RGB: 1197 lm, R: 266 lm G: 765 lm B: 166 lm (diffuse version)
optics version: 18 power LEDs pitch 100, diffuse version: 246 mid power LEDs, RGB version: 138 low power LED full color
LED colour: 2700K, 3000K, 4000K, RGB
Optics: 40°, 65°, 20°x50°, diffuse
Body material: end caps in AISI 316L stainless steel
Screen material: diffuser in opal polycarbonate, installed flush with the surface, screen in transparent polycarbonate
Ingress protection: IP68
Impact resistance: IK10
available on request in 313mm-long, 5W (diffuse optics), 4W (with multiple optics) and 5W (RGB) versions
Protection systems: IPS
Appliance class: III
Weight: 2100 g
Dimensions: Ø25x1803 mm
