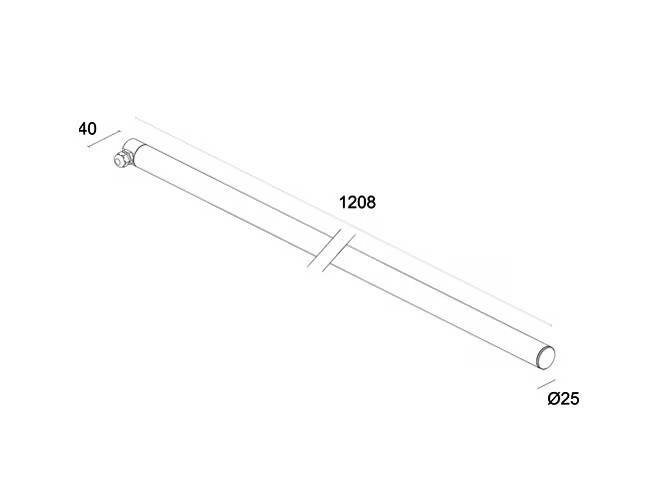

Габаритные размеры
Информация

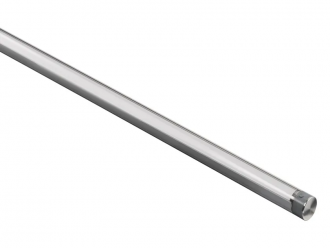

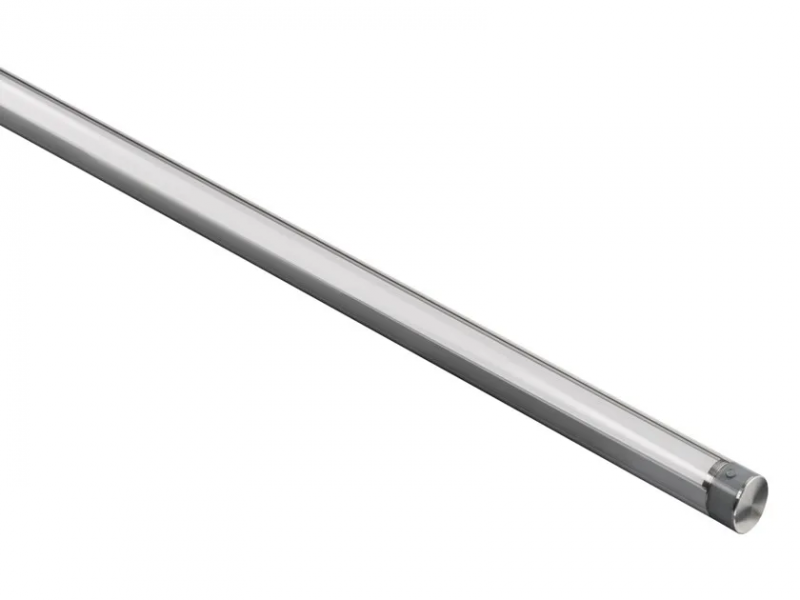

Linear profile for outdoor and underwater applications
surface mounted (ceiling, wall, floor)
Power: optics version: 14W, diffuse version: 21W, RGB version: 24W
Power supply: 24Vdc
Lumen output at source: 1237 lm (3000K, optics version), 2268 lm (3000K, diffuse version), RGB: 1100 lm, R: 245 lm G: 703 lm B: 152 lm (diffuse version)
Delivered lumen output: 1008 lm (3000K, 40°), 1138 lm (3000K, diffuse version), RGB: 786 lm, R: 175 lm G: 502 lm B: 109 lm (diffuse version)
optics version: 12 power LEDs pitch 100, diffuse version: 162 mid power LEDs, RGB version: 90 low power LED full color
LED colour: 2700K, 3000K, 4000K, RGB
Optics: 40°, 65°, 20°x50°, diffuse
Body material: end caps in AISI 316L stainless steel
Screen material: diffuser in opal polycarbonate, installed flush with the surface, screen in transparent polycarbonate
Ingress protection: IP68
Impact resistance: IK10
available on request in 313mm-long, 5W (diffuse optics), 4W (with multiple optics) and 5W (RGB) versions
Protection systems: IPS
Appliance class: III
Weight: 800 g
Dimensions: Ø25x1208 mm
