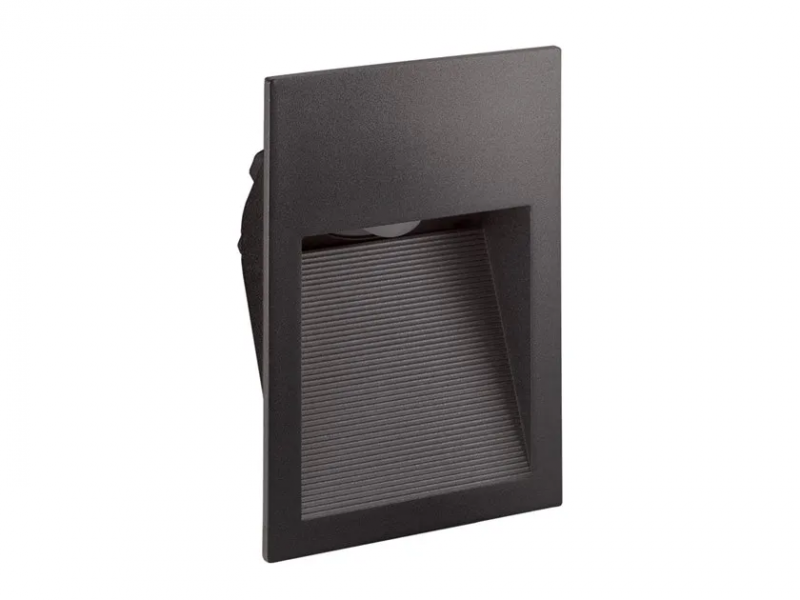

Step light for outdoor applications
recessed (wall)
Power: 6W, 5W
Power supply: 230Vac, 24Vdc
Lumen output at source: 383 lm (3000K, CRI 80), 355 lm (3000K, CRI 90)
Delivered lumen output:214 lm (3000K, 150°x90°, CRI 80), 186 lm (3000K, 150°x90°, CRI 90), 195 lm (3000K, 60°, CRI 80), 170 lm (3000K, 60°, CRI 90)
1 high-intensity power LED, 1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 60°, asymmetrical 150°x90°
CRI: 80, 90
Material: body in technopolymer and aluminium
Finishes: anthracite, cor-ten, white, grey
230Vac: built-in power supply unit, 24Vdc: power supply unit not included
230Vac version: includes 0,20 m neoprene cable, H05RN-F 2x1,0 Ø7 mm
24Vdc version: includes 0,30 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection: IP65
Impact resistance: IK06
Protection systems: IPS
Operating temperature: -20°C — +45°C
Maximum device temperature: 50°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: II (230Vac)
III (24Vdc)
Weight: 300 g
Dimensions: 99x44x143 mm.
