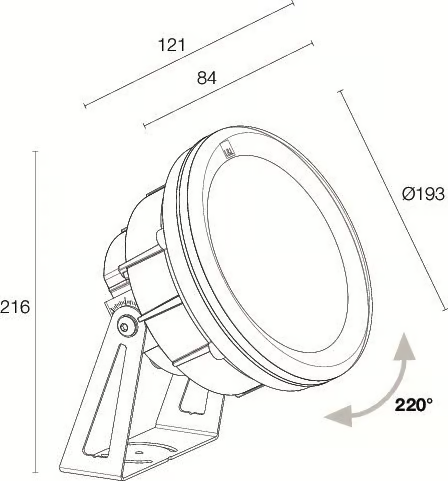

Габаритные размеры
Информация

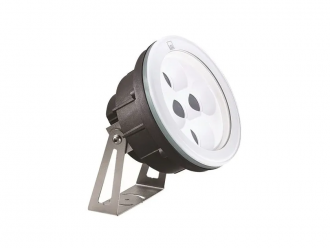

Projector for underwater applications (not suitable for underwater applications in salt water, only suitable for underwater applications)
surface mounted (wall, floor)
Power: 30W
Power supply: 24Vdc
Lumen output at source: 2537 lm (3000K), RGBW: 1474 lm, R: 231 lm G: 432 lm B: 118 lm W: 693 lm (4000K), cyan: 1303 lm
Delivered lumen output: 1876 lm (3000K, 34°), RGBW: 1090 lm, R: 171 lm, G: 319 lm, B: 87 lm, W: 513 lm (4000K, 34°), cyan: 961 lm (34°)
5 power LEDs groups, RGBW: 5 RGBW LEDs groups, Cyan: 5 Cyan LEDs groups
LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan
Optics: 22°, 34°, 62°, 31°x64°
Material: body in thermally conductive plastic, glass cover, bracket in AISI 316L stainless steel
power supply unit not included
includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm
RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm
Ingress protection: IP68
Impact resistance: IK10
Protection systems: IPS, NTC
Operating temperature: 0°C — +45°C (installation underwater)
Maximum device temperature: 40°C (Ta 25°C)
Weight: 3260 g
Dimensions: Ø193x216 mm
Accessories: WH0403 Honeycomb louvre.
