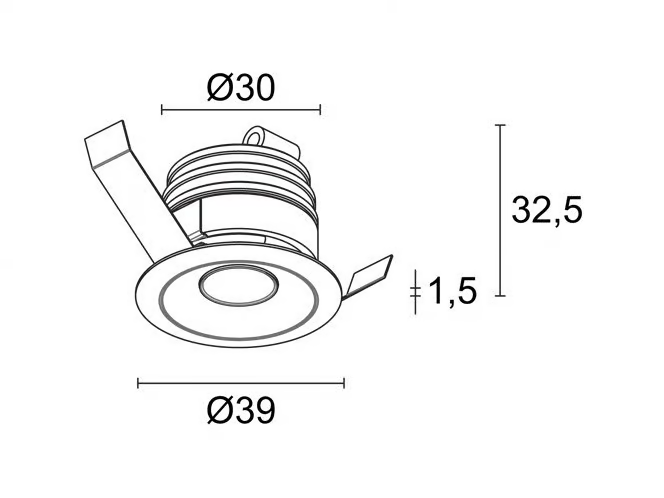

Габаритные размеры
Информация

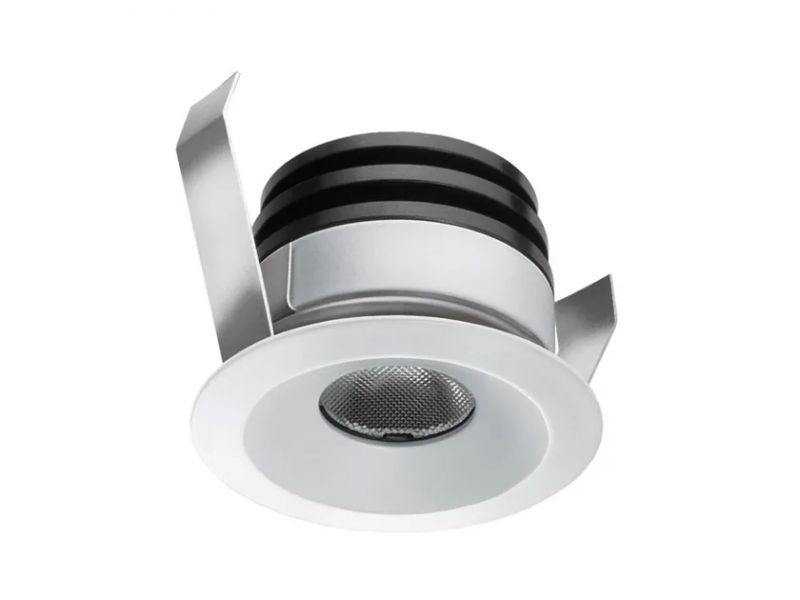

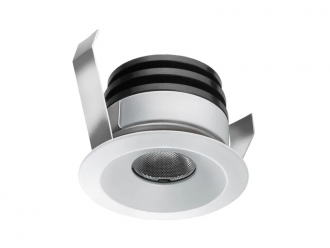

Recessed for indoor applications
recessed (ceilings, and false ceilings and niches in plasterboard)
Power: max 1,5W
Power supply: max 500mA
Lumen output at source: 157 lm (3000K, 500mA)
Delivered lumen output: 144 lm (3000K, 29°, 500mA)
1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 17°, 29°, sharp 48°, 52°, 16°x34°
CRI: 90
Body material: radiator in black anodized aluminium acting as a cooling element. Body and recessing frame in aluminium, made entirely on a CNC lathe. Springs in C67 annealed spring steel
Finishes: body and frame electro-coloured black, body and frame painted white (RAL 9003 matt)
RAL finish on request
Ingress protection: IP40
Appliance class: III
Weight: 70 g
Dimensions: Ø39x32.5 mm
