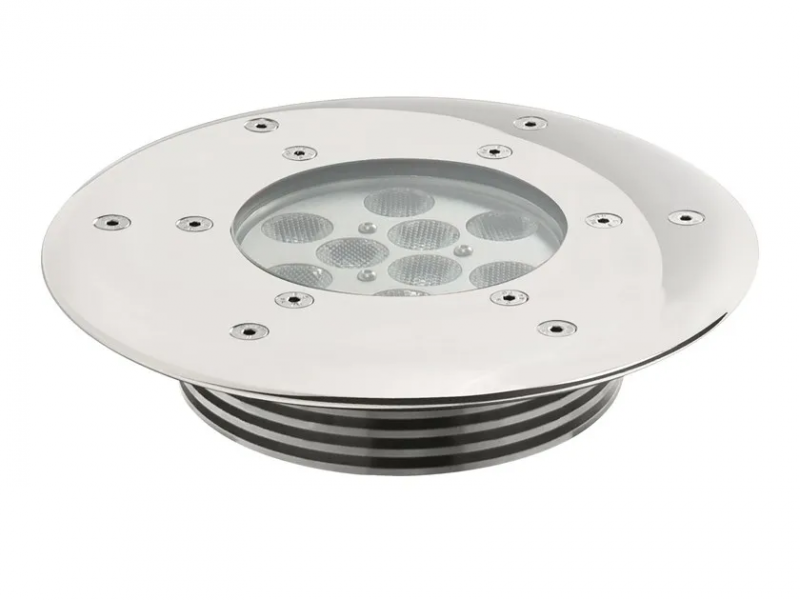

Recessed uplight for outdoor and underwater applications
recessed (wall, ground), max depth 10 m
body and trim in AISI 316L stainless steel, screen in tempered glass
6. 9 power LEDs
RGB: 9 power LEDs
max 12W (6 power LEDs x 2W), max 18W (9 power LEDs x 2W)- 24Vdc
RGB: 18W (9 power LEDs x 2W) - max 500mA
includes 5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
RGB: includes 5 m FEP+PCP cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
LED colour - white: parallel connection, RGB: series connection
total delivered lumens: 590 lm (3000K, 6 power LEDs), 885 lm (3000K 9 power LEDs)
optics: 10°, 20°, 40°
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
RGB
ingress protection: IP68
impact resistance: IK09
equipped with IPS
operating temperature: -10°C +45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 3,50 kg
dimensions Ø201x65 mm
dimming using a 24Vdc dimmer
accessories: outer casing WC5005, PVC coated accessory WC5105
