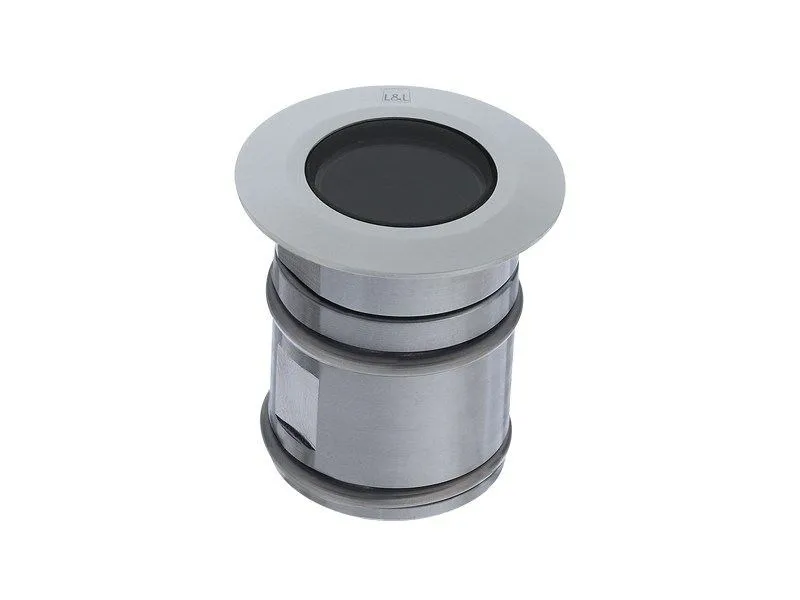

Recessed uplight for outdoor applications (not suitable for immersion in swimming pools or fountains)
recessed (ceiling, wall, ground)
body and trim in AISI 316L stainless steel, screen in tempered, transparent glass, screen in tempered, frosted glass (diffuse optics)
1 power LED
max 2W - max 500mA
includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
series connection
total delivered lumens: 88 lm (3000K, 500mA)
optics: 10°, 19° sharp, 20°, 40°, 54° sharp, 10°x45°, diffuse
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
red
green
ingress protection: IP68
impact resistance: IK10
equipped with IPS
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,20 kg
body dimensions Ø35x52 mm
cut-out size Ø30 mm
overall volume Ø80x100 mm
dimming using a dimmable power supply unit
accessories: outer casing WC0201, outer casing WC0202, fixing springs WG0301 for installation on plasterboard, honeycomb louvre WH0101
