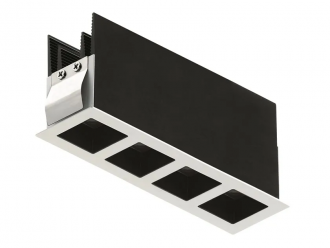

Recessed downlight for indoor applications
recessed (ceiling)
26W, 18W
230Vac
Lumen output at source: 1428 lm (3000K, 18W), 1904 lm (3000K, 26W)
Delivered lumen output: 992 lm (3000K, 30°, 18W), 1340 lm (3000K, 30°, 26W)
4 power LEDs High Intensity
LED colour: 2700K, 3000K, 4000K
Optics: 17°, 17°x45°, 30°, 42°
CRI: 80, 90
body in black anodized aluminium, trim in steel
Finishes: white, black
power supply unit included
Control system: on / off, 1-10V + PUSH, DALI
Ingress protection: IP40
Ingress protection mounted: IP44
Operating temperature: 0°C — +45°C
Maximum device temperature: 40°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Weight: 420 g
Dimensions: 169x49x71 mm
Cutout dimensions: 162x42 mm
Volume of thermal heatsink: 340x100x130 mm
Accessories: WC8702 Outer casing for solid walls, WC8705 Outer casing for plasterboard
Energy efficiency class: A / A+ / A++
