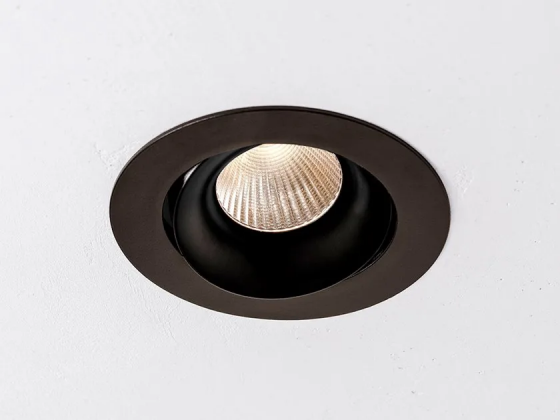

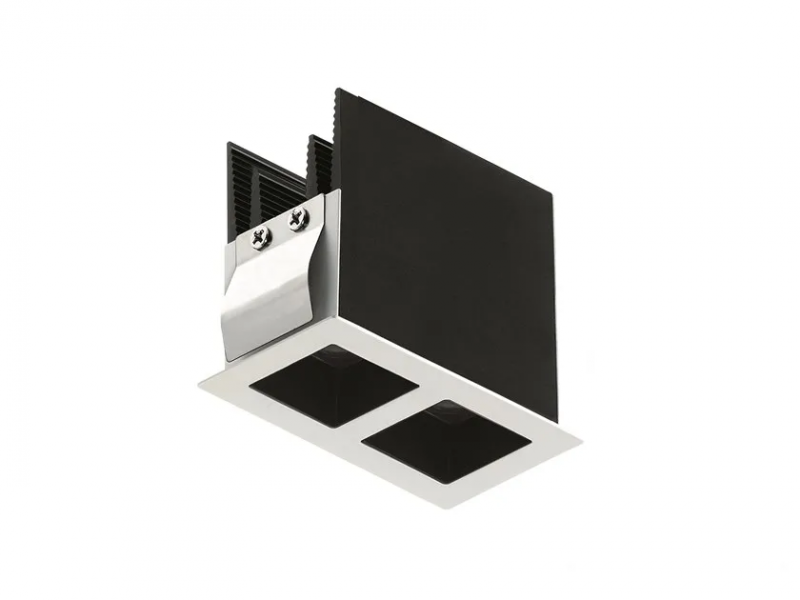

Recessed downlight for indoor applications
recessed (ceiling: flush or deep set)
10W, 15W
230Vac
Lumen output at source: 700 lm (3000K, 10W), 960 lm (3000K, 15W)
Delivered lumen output: 496 lm (3000K, 30°, 10W), 670 lm (3000K, 30°, 15W)
2 high-intensity power LED, 3-step MacAdam, 50000h L85 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 17°, 30°, 42°, 17°x45°
CRI: 80, 90
body in black anodized aluminium, trim in steel
Finishes: white, black
power supply unit included
includes 0,30 m cable
Control system: 1-10V + PUSH, DALI, on / off
Ingress protection: IP40
Ingress protection mounted: IP44
UGR < 10 for 17° and 30° optics
2700K, 3000K: CRI 90, 4000K: CRI 80
Operating temperature: 0°C — +45°C
Maximum device temperature: 50°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: II
Weight: 350 g
Dimensions: 89x49x71 mm
Cutout dimensions: 83x42 mm
Volume of thermal heatsink: 170x170x130 mm
Accessories: WC8712 Outer casing for flush installation in solid ceilings, WC8713 Outer casing for recessed installation in plasterboard ceilings - white, WC8713N Outer casing for recessed installation in plasterboard ceilings - black
Energy efficiency class: A / A+ / A++
