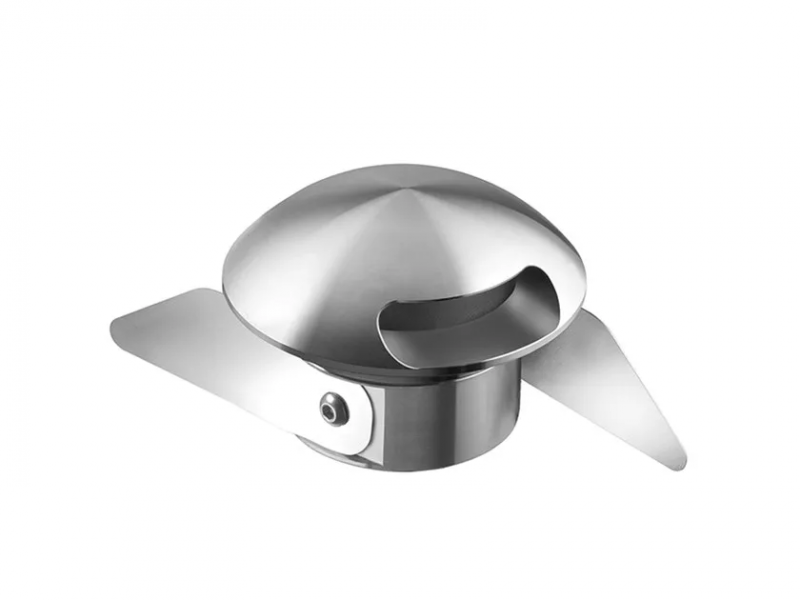

Recessed for outdoor applications, single or double beam
recessed (wall, ground)
body and trim in AISI 316L stainless steel or aluminium, screen in sandblasted plexiglass
finishes: stainless steel, anthracite, grey
single beam: 1 power LED, double beam: 2 power LEDs
single beam: 2W - 24Vdc, double beam: 2W (1W+1W) - 24Vdc
includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
total delivered lumens: single beam: 70 lm (3000K), double beam: 51 lm (3000K) per beam
radial optics
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
ingress protection: IP67
impact resistance: IK09
equipped with IPS
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 730°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,25 kg (aluminium trim) 0,47 kg (stainless steel trim)
body dimensions Ø60x59 mm
cut-out size Ø45 mm
overall volume Ø80x100 mm
dimming using a dimmer
accessories: outer casing WC1500, outer casing WC1501
