Liquid line f3

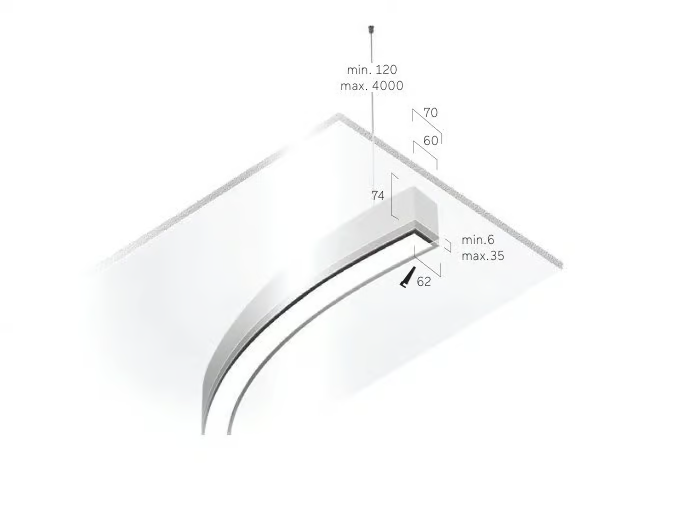

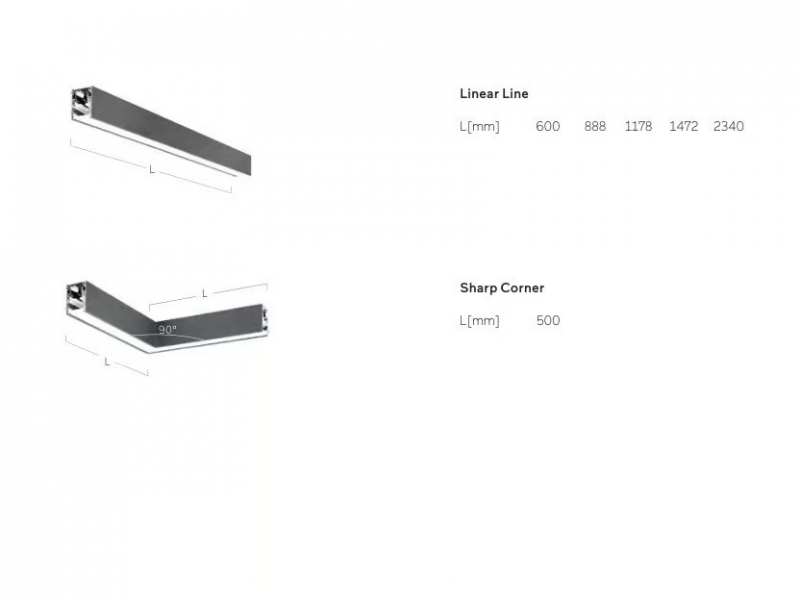

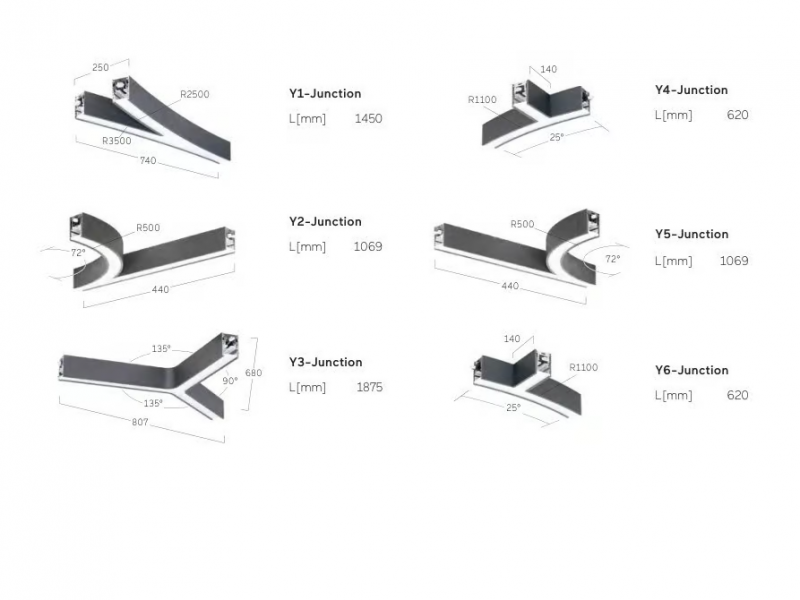

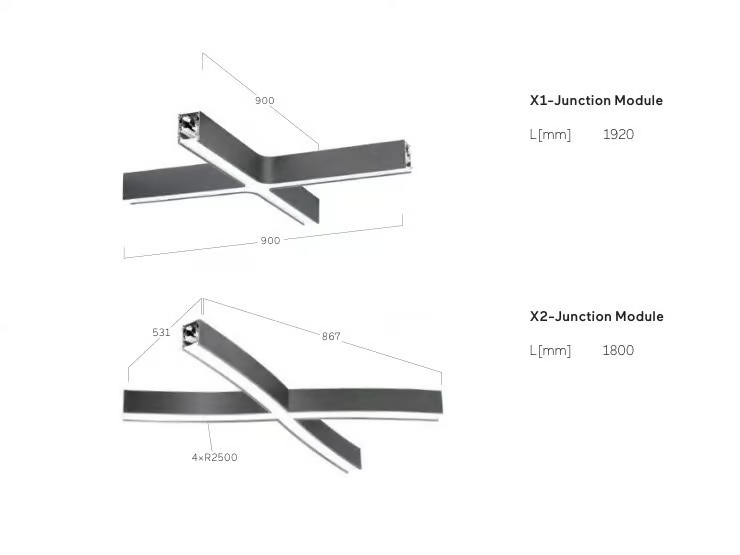

LED recessed light system for installation in ceiling cut-outs openings. Direct only light distribution. Highly flexible system consisting of linear elements, curved elements and Y- and X-connectors. Each module is designed as a stand-alone luminaire with an integrated driver and can be connected to the other modules using a sophisticated connector system to create any desired lighting structure. Millimeter-precise production as well as special curves (Opal only) possible. Based on customer specifications, Lightnet creates technical drawings of the desired structure for review and approval. Luminaire body with smooth bends made of aluminium profile with 60mm optics width, crafted in one piece with no visible seams. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting. Driver optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. One with the architecture. The LIQUID LINE product family adapts perfectly to the shapes of the architecture and forms a form-fitting unit with the building. In-house production makes its flexibility unique on the market, enabling smooth transitions and merging with the premises - for a unique architectural experience. For years, architecture was characterised by cubism - functionalism and clear lines were in the foreground. Through new building technologies, the forms of architecture became increasingly organic and expressive, characterised by flowing lines and new combinations. This architectural development in combination with LED technology, which makes almost any form technically feasible, enabled us to think much more freely in terms of design and forms. This was the birth of the LIQUID LINE. Lightnet was the first manufacturer on the market with a flexible light line for flowing shapes and to this day we are the only supplier who can implement all radii horizontally and vertically. Highly flexible system suitable for millimetre-precise cutting to size as well as individual solutions. Any combination of circular elements with all linear and curved elements of the Liquid Line 3D family is possible. The diversity of the LIQUID LINE is also reflected in the areas of application: from offices to shops, shopping centres, hotels, public buildings, lobbies and churches to clinics and educational institutions, there are no limits. The LIQUID LINE's recipe for success: it offers a broad portfolio of standard modules and at the same time can be produced in any conceivable shape - for perfect customisation. Thus, the LIQUID LINE is not only flexible on the horizontal plane, modules with a customised vertical bend are also possible. Unlimited possibilities also apply to the technical lighting features: light colours, colour rendition, opal diffusers and microprismatic optics for glare-free use in offices are freely configurable. Direct and indirect light can be switched separately, and a wide variety of colours and surfaces promote perfect architectural adaptation.
