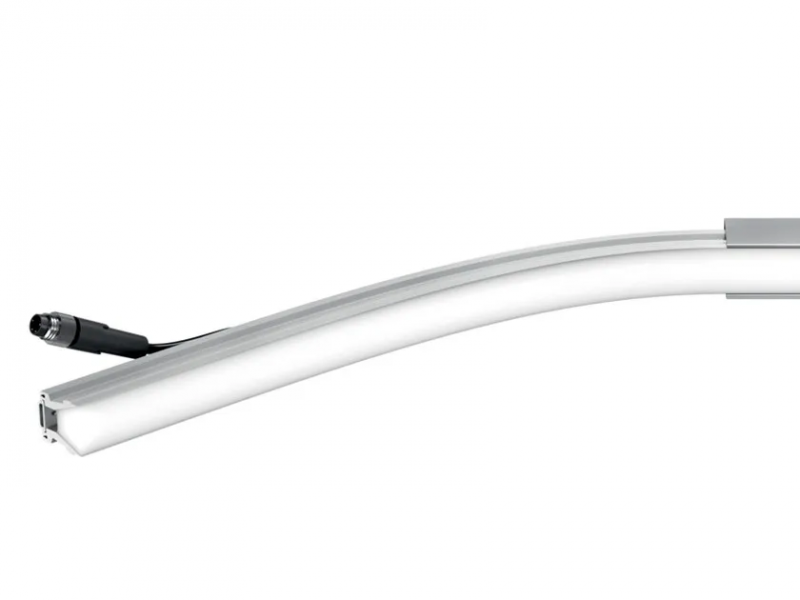

Underscore inout - top bend

Underscore InOut Side Bend 10mm • Lengths from 254mm to 7004mm. • 21 possible combinations. • Profile (straight lines) or clip (curved lines) installation. • DALI and DMX interface. • IP68. • *Values refer to Top Bend white versions. For all other versions please consult the specific product code's technical information. • Class III Protected against 20 J shocks IP68: Completely protected against penetration of dust, Protected against the effects of prolonged immersion Underscore InOut Side Bend 16mm • Linear luminaire with monochromatic (2900K-4500K), RGB or Tunable White LEDs for installation in fountains and areas around swimming pools (not suitable for installation inside swimming pools). • Surface mount installation using AISI 316 stainless steel clips. • Based on a flexible white 24Vdc circuit, with 6 lengths available: 254/504/1004/2004/3004/7004 mm. • The PWM LED circuit is fully IP68 encapsulated with a very high performance white (external) and opal (emitting surface) polymer sheath: the material allows for use and installation at a maximum temperature of 45 °C in air and 25 °C in water. • The water must have a pH value between 7 and 8. • Uniform lighting without visible points is assured along the entire profile of the strip as far as the terminal parts. • Complete with a single output cable L=5000. • Complete with stainless steel wires to limit plastic deformation of the body that may otherwise damage the LED circuit. • Resistant to seawater testing in accordance with EN60598-2-18, UV and solvents. • IK10 impact resistance. • Contact temperature <40°.
