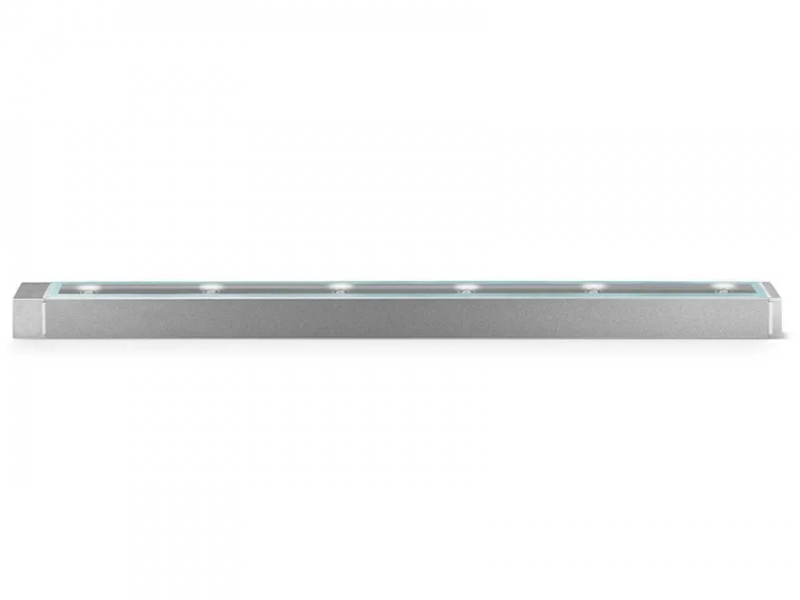

Linealuce mini 37r

• Wall, ceiling and balustrade installation using accessory supports. • Extruded aluminium body and end caps in die-cast zamak complete with silicone gaskets. • Optical compartment closed at the top by a 3mm thick transparent glass screen secured with silicone. • The product is supplied with a single PG9 cable gland in nickelplated brass and an outgoing PVC cable. • The linear connector IP68 and the junction box IP67 with quickterminals are available for the electrical connection. Electronic power supplies to be ordered separately. • Luminaire ready for pass-through wiring. • All external screws used are in A2 stainless steel. Linealuce Mini 37 surface DALI/DMX • Wall, ceiling and balustrademounted using accessory brackets. • Extruded aluminium body, with die-cast zamak end caps complete with silicone seals. • The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. • The product is supplied with a single nickel-plated brass cable gland PG9 and a PVC outlet cable. For the electrical connection there is an IP68 linear connector and an IP67 junction box with quickcoupling terminals. • Electronic ballasts to be ordered separately. • Vin=48V dc electronic ballasts to be ordered separately, DALI or DMX-RDM internal drivers, contained in special extruded aluminium side boxes, with zamak die-cast end caps complete with silicone seals, nickel-plated brass cable glands PG13.5 and outlet cables. • Luminaire designed for passthrough wiring. • All external screws are made of A2 stainless steel.
