Light up orbit

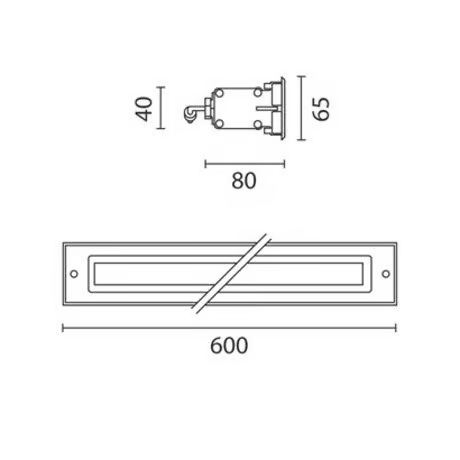

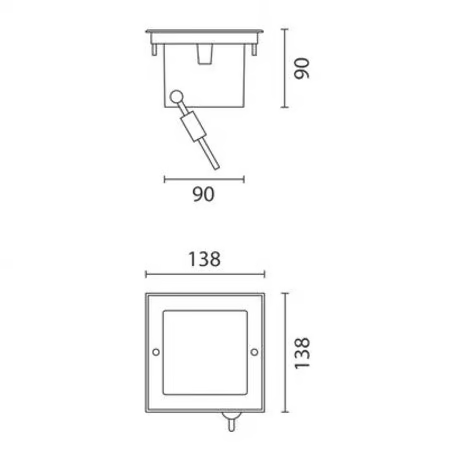

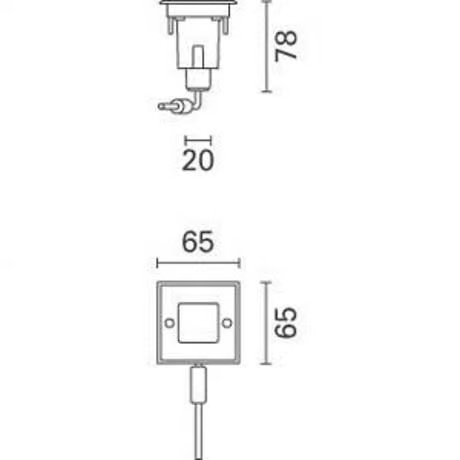

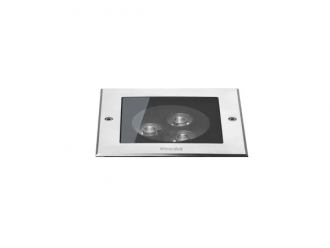

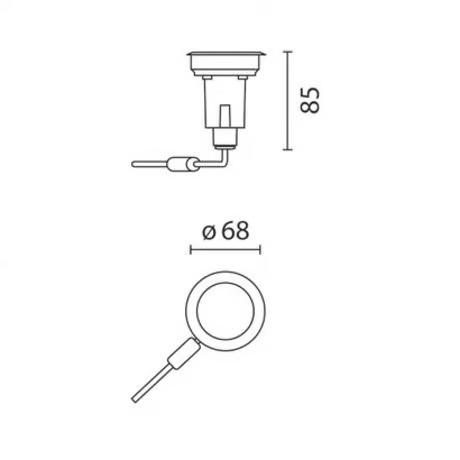

Light Up Orbit - body in techno-polymer / stainless steel frame • Wall-mounted recessed luminaire intended for use with LED light sources for signals, illumination and floor washer applications. • Comprises body (round and square), casing and frame. • Circular and square version: the body of the fi tting is made of highly resistant thermoplastic material H=100 mm painted cast aluminium barrel outer casing for installation, which can be ordered separately, for wall- or ground-installation, complete with end cap. • H=150 mm version available in plastic for installation in gardens. • Linear version: extruded aluminium body and die-cast black painted end caps H=100 mm painted extruded aluminium and stainless steel outer casing for installation, which can be ordered separately, for wall or ground-installation, complete with top end cap. • Stainless steel frame sodiumcalcium upper glass on signal LED versions, opal internal screen black silicone rubber sealing gasket AISI 304 stainless steel turned parts for fixing the body to the frame/glass linear versions with sodium-calcium tempered glass secured to the body with silicone anti-glare spillring made of thermoplastic material for versions with lighting LEDs. • Versions with dynamic RGB colour change compatible with pre-configured light management systems. • Versions with adjustable optics. • Static load resistance 500 Kg with plastic casing, 1000 Kg with aluminium casing. • Impact resistance IK09. • Contact temperature <40 °C. • Compact dimensions. • All external screws used are in A2 stainless steel.
