Light up earth

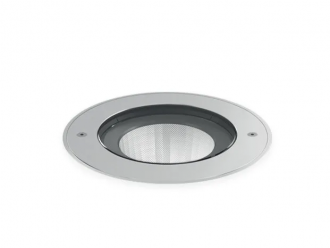

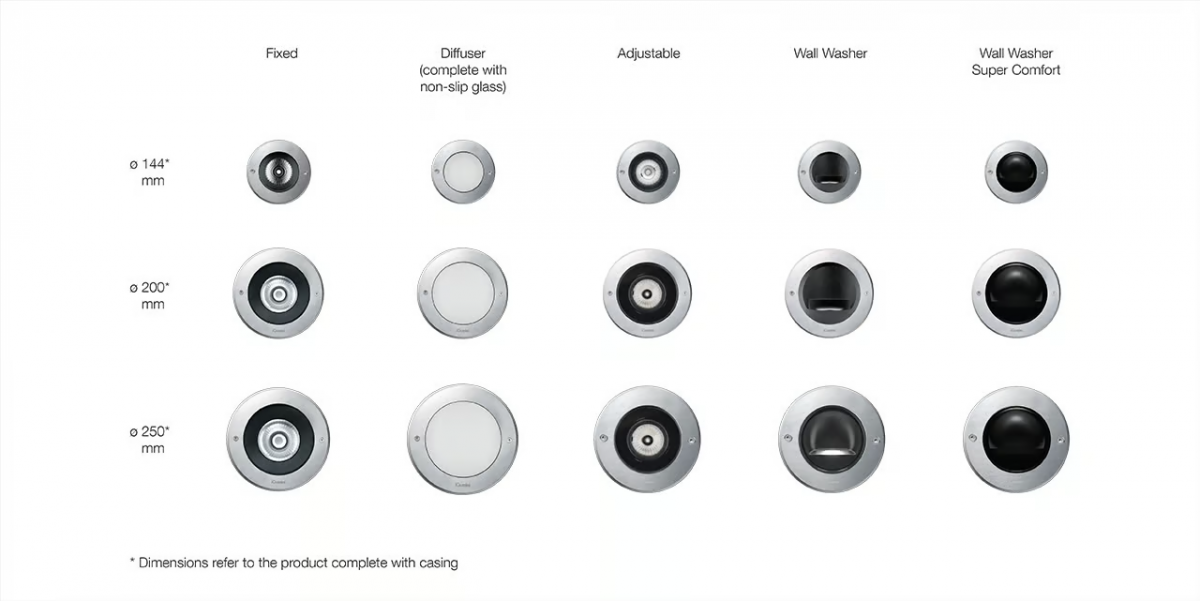

The Light Up collection is specifically designed to be versatile. Designers do not have to ask themselves whether an effect can be created, as anything is possible, in any dimension, application or environment, from residential to urban. Ceiling, wall, floor and ground installations. Concentrated and open distributions with super spot, spot, medium, flood and elliptical optics. Vertical excellence with wall washer optics. Ultimate visual comfort in versions with diffused light or graphic effects with light blade lenses. Beam adjustability and accessories to construct personalised light scenarios. No limits, only an infinite degree of freedom. • Floor/ground-mounted recessed luminaire intended for use with LED light sources. • Comprises body and frame casing. • Body and flush frame in AISI 304 stainless steel installed with captive screws, hardened safety glass A2 stainless steel cable gland complete with outgoing power supply cable type 4x1 mm2 (DALI) 2x1 mm2(ON-OFF). • Versions with diffuser optics complete with non-slip surface glass (complies with R13 class in accordance with DIN 51130). • The cable is provided with IP68 internal anti-transpiration device. • Casing in plastic complete with AISI 304 stainless steel ring, to be ordered separately. • Complete with DALI power supply unit (ø 144 mm DALI power supply unit only on certain versions) built-into the body of the product and in some cases in a separate IP68 power supply box (adjustable versions). • Optics with plastic lenses (Opti Beam Lens) or reflectors in anodized aluminium (Opti Beam Reflector). • Adjustable versions with an external adjustment system (Patent Pending) without having to open the product, complete with graduated scale for aiming memory. • Internal optical accessories for versions with fixed optics and reflector: refractor, louvre, soft lens filter. • Contact temperature <40 °C. • Static load resistance 5000 Kg. • All screws used are in A2 stainless steel (Torx - safety type). • IP68 protection for product and cable alike using IP68 connectors. • The product is not considered suitable for installation in swimming pools and fountains.
